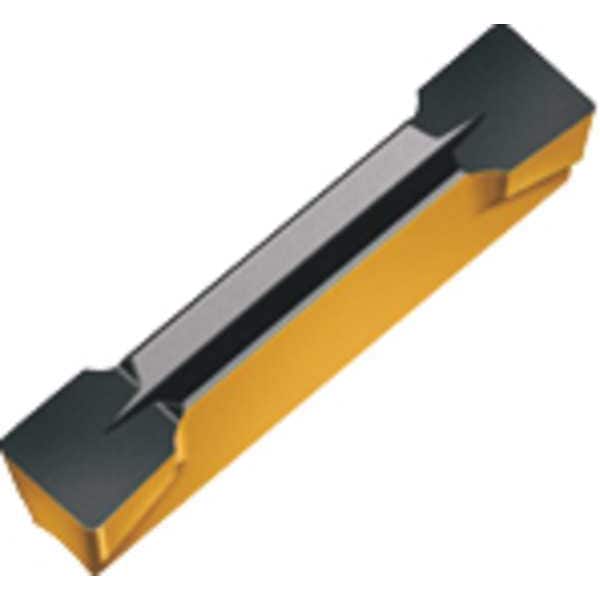

Walter Grooving/Parting Insert, GX, Carbide GX24-3E400N040-UA4 WAK20 - main

Grooving/Parting Insert, GX, Carbide

  • Mfr # GX24-3E400N040-UA4 WAK20

  • Zoro # G9689023

product price: $34.35
/ea
Sold in multiples of 10 for $343.50

Key Features

Style
Pressed
Insert Seat Size
E
Width
4.00mm
Chip-Breaker
Yes
Grade
WAK20
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GX24-3E400N040-UA4 WAK20
Zoro #
G9689023
UPC #
-
Country of Origin
Germany

Dimensions

Insert Seat Size
E
Width
4.00mm
Corner Radius
0.40mm
Overall Length
24.00mm
Seat Size
E
Insert Size
24
Reference Length
24.00mm
Max. Grooving Width
4.00mm
Depth of Cut
22.00mm

Details

Item
Parting and Grooving Insert
Style
Pressed
Chip-Breaker
Yes
Grade
WAK20
Cutting Direction
Neutral
Workpiece Compatibility
Cast Iron (K), Steel (P)
Hardened (H) Compatibility
No
Steel (P) Compatibility
Yes
ISO Number
GX24-3E400N040-UA4 WAK20
Stainless (M) Compatibility
No
Rake
Positive
Insert Material
Carbide
Non Ferrous (N) Compatibility
No
ANSI Number
GX24-3E400N040-UA4 WAK20
Coating
CVD
Cast Iron (K) Compatibility
Yes
Application
Universal Turning, Grooving, Facing, Parting Off, Medium Feed
For Use With
Walter Cut Monoblock Tools and Parting Blades
Lead Angle
0 Degrees
No. of Edges
2
Mounting Style
Slip In
Super Alloy (S) Compatibility
No
Coating Process
CVD
Clearance Angle
6 Degrees
Number of Cutting Edges
2
Chip-Breaker Code
UA4
Cutting Application
Axial Grooving, Cut-Off, Facing, Longitudinal Turning, Radial Grooving
Insert Holding Type
Slip In
Number of Cutting Sides
2
Cutting Location
External
Material - Machining
Carbide
ANSI Code
GX24-3E400N040-UA4 WAK20
Hole Type
No Hole
Primary Material Application
Cast Iron
Primary Material Application ISO Code
K
Manufacturer Grade
WAK20
Measurement System
Metric
Insert Style
GX

Description

Parting and Grooving Insert, Neutral, Max. Grooving Width 4.00mm, ANSI Code GX24-3E400N040-UA4 WAK20, Chip-Breaker Code UA4, Clearance Angle 6 Degrees , Coating Process CVD
