  11. Indexable Face Mill, 1.260" Cutter Dia, 3 Inserts, 2.00mm Cut Depth, F2330 Series

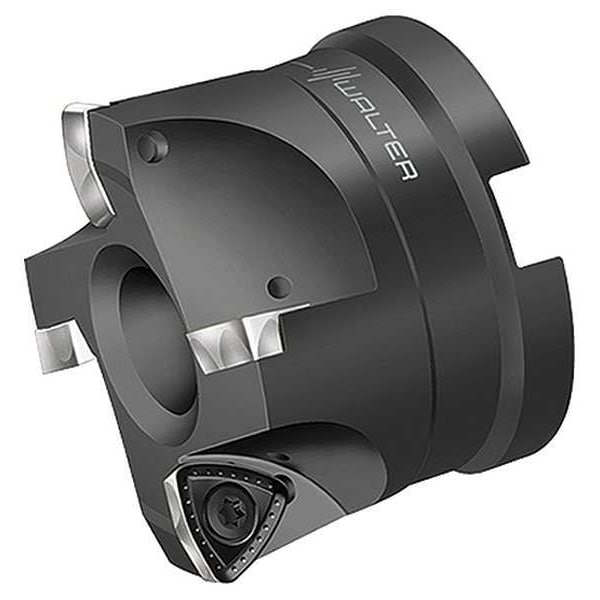

Walter Indexable Face Mill, 1.260" Cutter Dia, 3 Inserts, 2.00mm Cut Depth, F2330 Series F2330.B.052.Z03.02 - main

Indexable Face Mill, 1.260" Cutter Dia, 3 Inserts, 2.00mm Cut Depth, F2330 Series

  • Mfr # F2330.B.052.Z03.02

  • Zoro # G8180706

product price: $682.99
/ea
Free Shipping & Returns

Key Features

Cutter Dia.
1.260"
Series
F2330
Depth of Cut
2.00mm
Number of Inserts
3
Nomenclature
F2330.B.052.Z03.02
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
F2330.B.052.Z03.02
Zoro #
G8180706
UPC #
-
Country of Origin
China

Dimensions

Cutter Dia.
1.260"
Depth of Cut
2.00mm
Cutting Length
0.079"
Overall Length (In.)
1.575
Diameter
1.260"
Shank Dia. (In.)
0.866
Overall Length
40.00mm
Insert Cutting Edge Length
2.00mm
Hub Outside Dia.
50.00mm
Max. Cutting Dia.
52.00mm

Details

Item
Indexable Face Mill
Series
F2330
Number of Inserts
3
Nomenclature
F2330.B.052.Z03.02
Bore
0.866"
Left/Right Hand
Right
Insert Screw
FS1030 Torx 20
Number of Inserts Required
3
Cutting Edge Type
Carbide
Material
All ISO
Features
3 Cutting Edges per Indexable Insert, FZ up to 3.5mm
Insert Holding Type
Hexagon Socket Head Cap Screw
ANSI Code
F2330.B.052.Z03.02
Number of Coolant Holes
2
Coolant Fed
Coolant Through
Standards
ISO 6462-A
Side Cutting Edge Angle
0 Degrees
Cutting Application
Circular Interpolation Milling, Face Milling (Roughing), Plunge Milling, Pocket Milling, Ramping
ISO Number
F2330.B.052.Z03.02
Max. Speed
24,400 RPM
Compatible Hardware
FS1030 T20 Clamping Screw

Description

Indexable Face Mill, Max. Cutting Dia. 52.00mm, Depth of Cut 2.00mm, ANSI Code F2330.B.052.Z03.02, Compatible Hardware FS1030 T20 Clamping Screw, Coolant Fed Coolant Through, Cutting Application Circular Interpolation Milling, Face Milling (Roughing), Plunge Milling, Pocket Milling, Ramping
