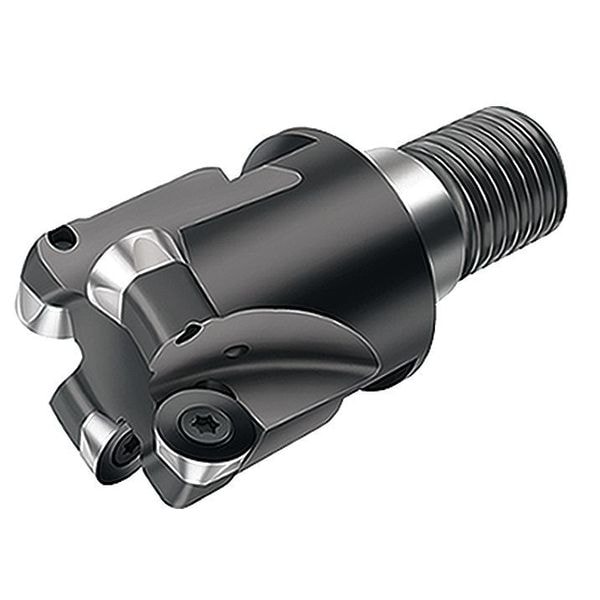

Indexable Face Mill, 1.496" Cutter Dia, 5 Inserts, 1.50mm Cut Depth, F2330 Series
Mfr # F2330.B.052.Z05.01,5
Zoro # G8214132
product price: $754.99
/ea
Free Shipping & Returns
Key Features
Cutter Dia.
1.496"
Series
F2330
Depth of Cut
1.50mm
Number of Inserts
5
Diameter
1.496"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
F2330.B.052.Z05.01,5
Zoro #
G8214132
UPC #
-
Country of Origin
China
Dimensions
Cutter Dia.
1.496"
Depth of Cut
1.50mm
Diameter
1.496"
Overall Length
40.00mm
Hub Outside Dia.
50.00mm
Insert Cutting Edge Length
1.50mm
Max. Cutting Dia.
52.00mm
Details
Item
Indexable Face Mill
Series
F2330
Number of Inserts
5
Material
All ISO
ISO Number
F2330.B.052.Z05.01,5
Number of Coolant Holes
2
ANSI Code
F2330.B.052.Z05.01,5
Standards
ISO 6462-A
Max. Speed
17,900 RPM
Compatible Hardware
FS359 T15 Clamping Screw
Coolant Fed
Coolant Through
Insert Holding Type
Hexagon Socket Head Cap Screw
Side Cutting Edge Angle
0 Degrees
Features
3 Cutting Edges per Indexable Insert, FZ up to 3.5mm
Cutting Application
Circular Interpolation Milling, Face Milling (Roughing), Plunge Milling, Pocket Milling, Ramping
Description
Indexable Face Mill, Max. Cutting Dia. 52.00mm, Depth of Cut 1.50mm, ANSI Code F2330.B.052.Z05.01,5, Compatible Hardware FS359 T15 Clamping Screw, Coolant Fed Coolant Through, Cutting Application Circular Interpolation Milling, Face Milling (Roughing), Plunge Milling, Pocket Milling, Ramping
