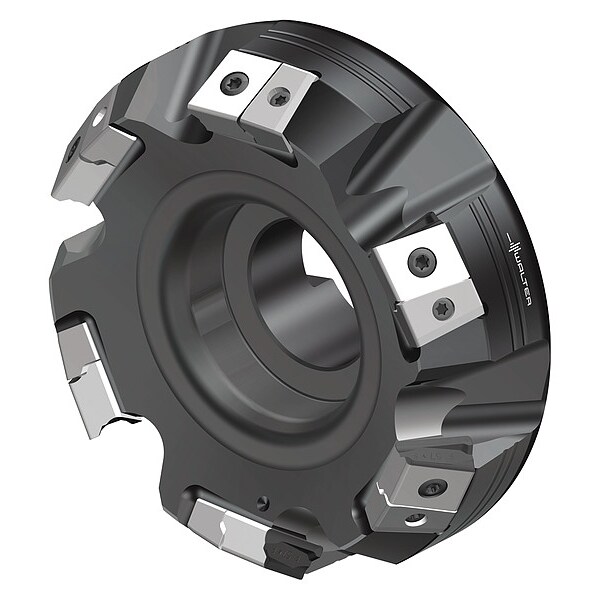

Indexable Face Mill, 6 Inserts, 0.63 in Cut Depth
Mfr # M3016-125-B40-06-16
Zoro # G2936640
product price: $1,846.99
/ea
Free Shipping & Returns
Key Features
Depth of Cut
0.6300 in
Number of Inserts
6
Arbor Dia.
1.5750 in
Overall Length
2.4800 in
Hub Outside Dia.
3.1500 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
M3016-125-B40-06-16
Zoro #
G2936640
UPC #
-
Country of Origin
China
Dimensions
Depth of Cut
0.6300 in
Arbor Dia.
1.5750 in
Overall Length
2.4800 in
Hub Outside Dia.
3.1500 in
Max. Cutting Dia.
5.6540 in
Min. Cutting Dia.
4.9210 in
Details
Item
Indexable Face Mill
Number of Inserts
6
Side Cutting Edge Angle
0 Degrees
Cutting Application
Face Milling
ANSI Code
M3016-125-B40-06-16
ISO Number
M3016-125-B40-06-16
Max. Speed
1,300 RPM
Coolant Fed
Non-Coolant Through
Standards
ISO 6462-B (Cutter Retaining Screw)
Description
Indexable Face Mill, Max. Cutting Dia. 5.6540 in, Arbor Dia. 1.5750 in, Depth of Cut 0.6300 in, ANSI Code M3016-125-B40-06-16, Coolant Fed Non-Coolant Through, Cutting Application Face Milling
