  11. Indexable Square Shoulder End Mill, 0.787" Cutter Dia, 5 Inserts, 30.00mm Cut Depth, F4038 Series

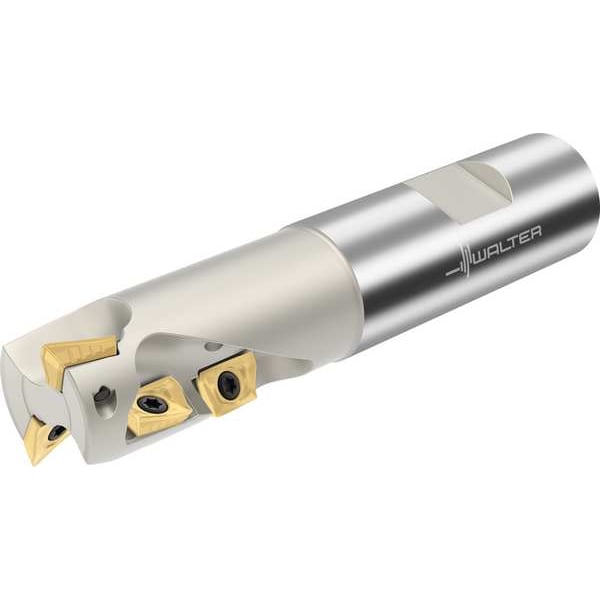

Walter Indexable Square Shoulder End Mill, 0.787" Cutter Dia, 5 Inserts, 30.00mm Cut Depth, F4038 Series F4038.W20.020.Z01.30 - main

Indexable Square Shoulder End Mill, 0.787" Cutter Dia, 5 Inserts, 30.00mm Cut Depth, F4038 Series

  • Mfr # F4038.W20.020.Z01.30

  • Zoro # G8093251

product price: $975.99
/ea
Free Shipping & Returns

Key Features

Cutter Dia.
0.787"
Series
F4038
Depth of Cut
30.00mm
Number of Inserts
5
Number of Inserts Required
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
F4038.W20.020.Z01.30
Zoro #
G8093251
UPC #
-
Country of Origin
China

Dimensions

Cutter Dia.
0.787"
Depth of Cut
30.00mm
Cutting Length
1.181"
Diameter
0.787"
Overall Length (In.)
3.78
Shank Dia. (In.)
0.787
Head Projection Length
45.00mm
Min. Cutting Dia.
20.00mm
Insert Cutting Edge Length
30.00mm
Overall Length
96.00 mm
Shank Dia.
20.00 mm
Max. Cutting Dia.
20 mm

Details

Item
Indexable Square Shoulder End Mill
Series
F4038
Number of Inserts
5
Number of Inserts Required
2
Material
All ISO
Cutting Edge Type
Carbide
Nomenclature
F4038.W20.020.Z01.30
Left/Right Hand
Right
Insert Screw
FS1454 Torx 8 IP
ISO Number
F4038.W20.020.Z01.30
Features
2 Cutting Edges per Indexable Insert, Full Effective Design
Max. Speed
40,000 RPM
ANSI Code
F4038.W20.020.Z01.30
Standards
DIN1835-B
Shank Type - Machining
Weldon Flat
Coolant Fed
Coolant Through
Number of Coolant Holes
4
Compatible Hardware
FS1454 T8IP Clamping Screw
Cutting Application
Pocket Milling, Ramping, Shoulder Milling (Roughing)

Description

Indexable Square Shoulder End Mill, Max. Cutting Dia. 20 mm, Shank Dia. 20.00 mm, Weldon Flat, Overall Length 96.00 mm, ANSI Code F4038.W20.020.Z01.30, Compatible Hardware FS1454 T8IP Clamping Screw, Coolant Fed Coolant Through
