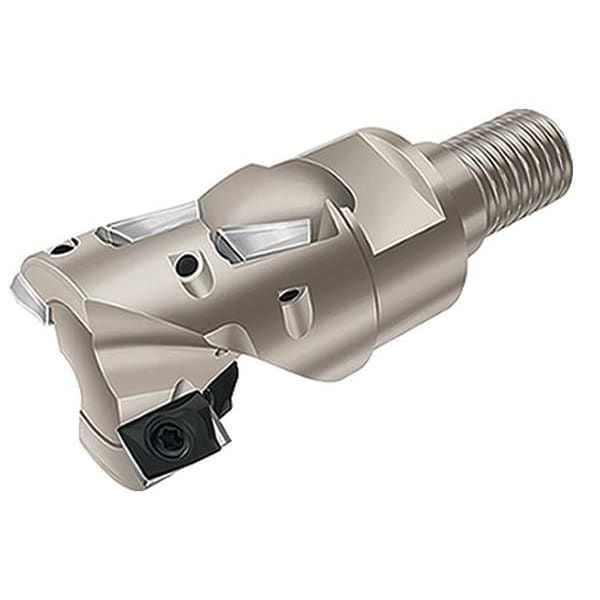

Walter Indexable Square Shoulder End Mill, 0.984" Cutter Dia, 8 Inserts, 30.00mm Cut Depth, F4038 Series F4038.W25.025.Z02.30 - main
Shop WALTER

Indexable Square Shoulder End Mill, 0.984" Cutter Dia, 8 Inserts, 30.00mm Cut Depth, F4038 Series

  • Mfr # F4038.W25.025.Z02.30

  • Zoro # G8392754

product price:  $1,298.99
/ea
Free Shipping & Returns

Key Features

Cutter Dia.
0.984"
Series
F4038
Depth of Cut
30.00mm
Number of Inserts
8
Cutting Edge Type
Carbide
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
F4038.W25.025.Z02.30
Zoro #
G8392754
UPC #
-
Country of Origin
China

Dimensions

Cutter Dia.
0.984"
Depth of Cut
30.00mm
Overall Length (In.)
3.937
Cutting Length
1.181"
Shank Dia. (In.)
0.984
Diameter
0.984"
Min. Cutting Dia.
25.00mm
Insert Cutting Edge Length
30.00mm
Shank Dia.
25.00 mm
Head Projection Length
50.00mm
Overall Length
100.00 mm
Max. Cutting Dia.
25 mm

Details

Item
Indexable Square Shoulder End Mill
Series
F4038
Number of Inserts
8
Cutting Edge Type
Carbide
Material
All ISO
Nomenclature
F4038.W25.025.Z02.30
Left/Right Hand
Right
ISO Number
F4038.W25.025.Z02.30
Cutting Application
Pocket Milling, Ramping, Shoulder Milling (Roughing)
Features
2 Cutting Edges per Indexable Insert, Full Effective Design
Compatible Hardware
FS1454 T8IP Clamping Screw
Coolant Fed
Coolant Through
ANSI Code
F4038.W25.025.Z02.30
Max. Speed
38,000 RPM
Shank Type - Machining
Weldon Flat
Standards
DIN1835-B
Number of Coolant Holes
4

Description

Indexable Square Shoulder End Mill, Max. Cutting Dia. 25 mm, Shank Dia. 25.00 mm, Weldon Flat, Overall Length 100.00 mm, ANSI Code F4038.W25.025.Z02.30, Compatible Hardware FS1454 T8IP Clamping Screw, Coolant Fed Coolant Through
