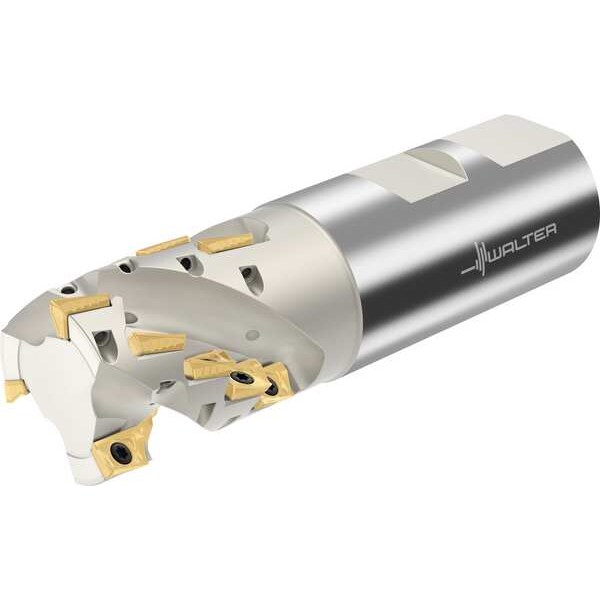

Walter Indexable Square Shoulder End Mill, 1.260" Cutter Dia, 37.00mm Cut Depth, F4038 Series F4038.W32.032.Z03.37 - main
Shop WALTER

Indexable Square Shoulder End Mill, 1.260" Cutter Dia, 37.00mm Cut Depth, F4038 Series

  • Mfr # F4038.W32.032.Z03.37

  • Zoro # G7799391

product price:  $1,850.99
/ea
Free Shipping & Returns

Key Features

Cutter Dia.
1.260"
Series
F4038
Depth of Cut
37.00mm
Overall Length (In.)
4.37
Cutting Length
1.457"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
F4038.W32.032.Z03.37
Zoro #
G7799391
UPC #
00007280137242
Country of Origin
China

Dimensions

Cutter Dia.
1.260"
Depth of Cut
37.00mm
Overall Length (In.)
4.37
Cutting Length
1.457"
Shank Dia. (In.)
1.26
Diameter
1.260"
Min. Cutting Dia.
32.00mm
Overall Length
111.00 mm
Insert Cutting Edge Length
37.00mm
Shank Dia.
32.00 mm
Head Projection Length
50.00mm
Max. Cutting Dia.
32 mm

Details

Item
Indexable Square Shoulder End Mill
Series
F4038
Material
All ISO
Nomenclature
F4038.W32.032.Z03.37
Left/Right Hand
Right
Insert Screw
FS1457 Torx 9 IP
Cutting Edge Type
Carbide
Number of Inserts Required
3
ISO Number
F4038.W32.032.Z03.37
Standards
DIN1835-B
Max. Speed
33,600 RPM
Coolant Fed
Coolant Through
Number of Coolant Holes
4
Cutting Application
Pocket Milling, Ramping, Shoulder Milling (Roughing)
Compatible Hardware
FS1454 T8IP Clamping Screw
ANSI Code
F4038.W32.032.Z03.37
Features
2 Cutting Edges per Indexable Insert, Full Effective Design
Shank Type - Machining
Weldon Flat

Description

Indexable Square Shoulder End Mill, Max. Cutting Dia. 32 mm, Shank Dia. 32.00 mm, Weldon Flat, Overall Length 111.00 mm, ANSI Code F4038.W32.032.Z03.37, Compatible Hardware FS1454 T8IP Clamping Screw, Coolant Fed Coolant Through
