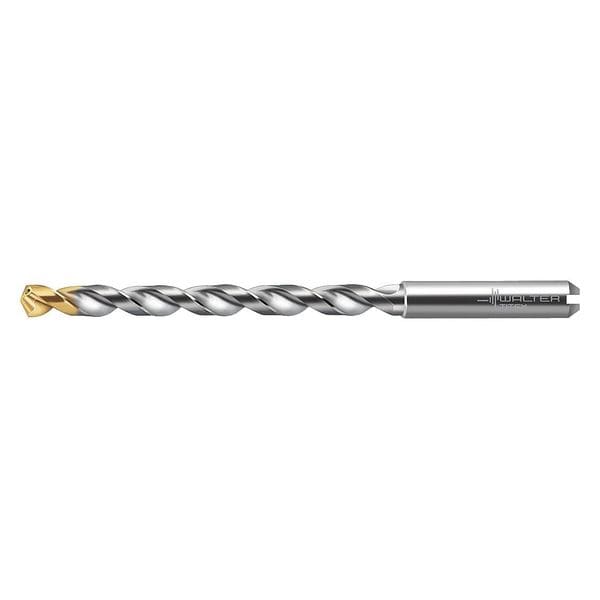

Jobber Drill, 8.00mm, Carbide, A3486TIP-8
- Mfr # A3486TIP-8
- Zoro # G6187544
product price:Â
$
426.99
/ea
Free Shipping & Returns
Key Features
Overall Length
117 mm
Drill Bit Point Angle
130 Degrees
Drill Bit Size
8 mm
Number of Flutes
2
Shank Dia.
8 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- A3486TIP-8
- Zoro #
- G6187544
- UPC #
- -
- Country of Origin
- China
- Item
- Jobber Length Drill Bit
- Drill Bit Point Angle
- 130 Degrees
- Number of Flutes
- 2
- Material - Machining
- Carbide
- Cutting Direction
- Right Hand
- Shank Type - Machining
- Straight
- Drill Bit Grouping
- Drill Bit
- Decimal Equivalent
- 0.3150
- Number of Pieces
- 1
- Standards
- DIN 6537
- List Number
- A3486
- Application
- Steel, Stainless Steel, Cast Iron, NF Metals, High Temperature Alloys and Titanium Alloys
- Primary Material Application
- Aluminum, Brass, Bronze, Copper, Steel
- Primary Material Application ISO Code
- N, P
- Measurement System
- Metric
- Flute Type
- Spiral
- Coolant Fed
- Coolant Through
- Drill Bit Point Type
- Self-Centering Point
- Series
- Alpha 44
- Sheeter Drill
- No
- Secondary Material Application ISO Code
- K, M, O, S
- Secondary Material Application
- Cast Iron, Composite, Nickel, Stainless Steel, Titanium
- Number of Coolant Holes
- 2
- Material Grade - Machining
- K30F
Dimensions
- Overall Length
- 117 mm
- Drill Bit Size
- 8 mm
- Shank Dia.
- 8 mm
- Depth:Dia. Ratio
- 8xD
- Drill Bit Dimension Type
- Metric
- Flute Length
- 79 mm
- Drilling Depth
- 67.00mm
- Shank Length
- 36 mm
- Maximum Drilling Depth
- 67 mm
- Drill Diameter Tolerance
- H6
- Drill Length Class
- Jobber-Length
- Drill Point Length
- 1.87mm
- Wire Rope Length
- 117 mm
- Length
- 117 mm
Description
Jobber Length Drill Bit, Drill Bit Size 8 mm, Drill Bit Point Angle 130 Degrees , Carbide, Decimal Equivalent 0.3150, Metric, Drill Bit Point Type Self-Centering Point, Coolant Through, Number of Coolant Holes 2
