  11. Jobber Drill, 8.00mm, Carbide, A6794TFP-8

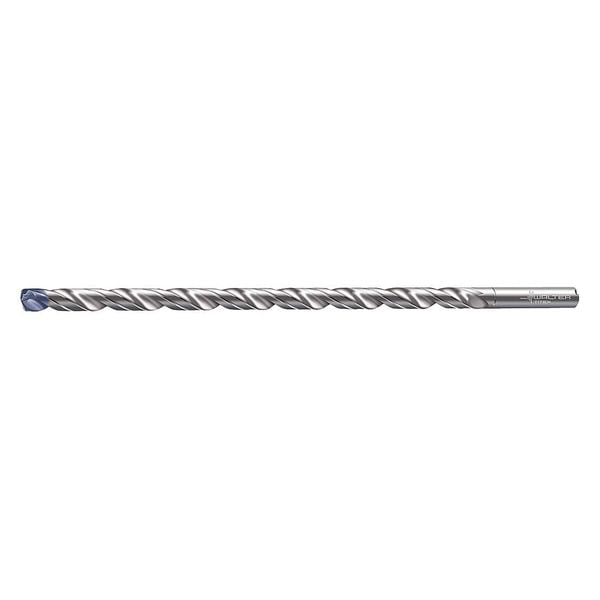

Walter Jobber Drill, 8.00mm, Carbide, A6794TFP-8 A6794TFP-8 - main

Jobber Drill, 8.00mm, Carbide, A6794TFP-8

  • Mfr # A6794TFP-8

  • Zoro # G8037951

product price: $562.99
/ea
Free Shipping & Returns

Key Features

Cutting Direction
Right Hand
Number of Pieces
1
Shank Dia.
8 mm
Standards
DIN 6537
Drill Bit Grouping
Drill Bit
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A6794TFP-8
Zoro #
G8037951
UPC #
-
Country of Origin
China

Dimensions

Shank Dia.
8 mm
Drill Bit Size
8.00 mm
Overall Length
222.00 mm
Flute Length
184.00 mm
Depth:Dia. Ratio
20xD
Shank Length
36 mm
Drill Point Length
1.46mm
Drill Diameter Tolerance
H7
Drill Length Class
Jobber-Length
Maximum Drilling Depth
184 mm

Details

Cutting Direction
Right Hand
Number of Pieces
1
Item
Jobber Length Drill Bit
Standards
DIN 6537
Drill Bit Grouping
Drill Bit
List Number
A6794TFP
Decimal Equivalent
0.3150
Drill Bit Point Angle
140 Degrees
Coolant Through
Yes
Grade
K30F
Drill Bit Material
Solid Carbide
Primary Material Application ISO Code
P
Measurement System
Metric
Number of Flutes
2
Primary Material Application
Steel
Shank Type
Straight
Finish
TiNAl
Flute Type
Spiral
Drill Bit Point Type
Self-Centering Point
Series
X.treme DH20
Number of Coolant Holes
2
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Hardened Steel, Nickel, Stainless Steel, Titanium
Sheeter Drill
No
Secondary Material Application ISO Code
H, K, M, N, S

Description

Jobber Length Drill Bit, Drill Bit Size 8 mm, Drill Bit Point Angle 140 Degrees , Carbide, TiNAl, Decimal Equivalent 0.3150, Metric, Drill Bit Point Type Self-Centering Point, Coolant Through, Number of Coolant Holes 2
