  11. Jobber Drill, 9/32", Carbide, A6589DPP-9/32IN

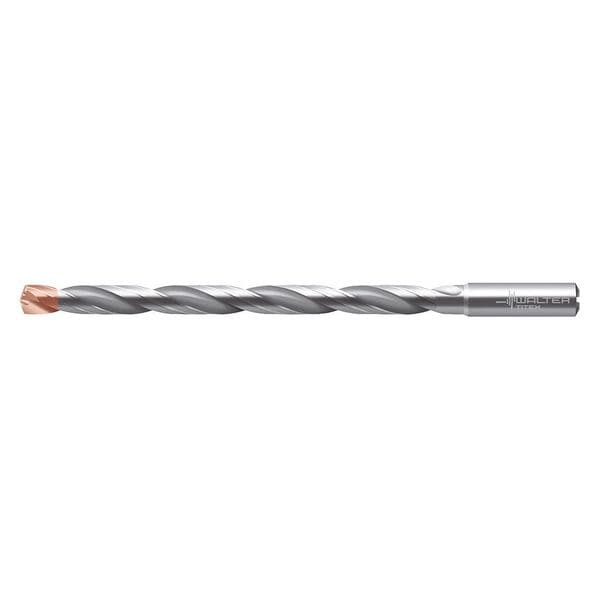

Walter Jobber Drill, 9/32", Carbide, A6589DPP-9/32IN A6589DPP-9/32IN - main

Jobber Drill, 9/32", Carbide, A6589DPP-9/32IN

  • Mfr # A6589DPP-9/32IN

  • Zoro # G7923097

product price: $333.99
/ea
Free Shipping & Returns

Key Features

Cutting Direction
Right Hand
Number of Pieces
1
Overall Length
5 13/16 in
Shank Dia.
8 mm
List Number
A3382
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A6589DPP-9/32IN
Zoro #
G7923097
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
5 13/16 in
Shank Dia.
8 mm
Flute Length
4 5/16 in
Drill Bit Size
9/32 in
Depth:Dia. Ratio
12xD
Shank Length
1 13/32 in
Maximum Drilling Depth
3-27/32 in
Drill Diameter Tolerance
M7
Drill Point Length
1.30mm
Drill Length Class
Jobber-Length

Details

Cutting Direction
Right Hand
Number of Pieces
1
List Number
A3382
Drill Bit Point Angle
140 Degrees
Drill Bit Material
Solid Carbide
Standards
DIN 6537
Coolant Through
Yes
Drill Bit Grouping
Drill Bit
Decimal Equivalent
0.2813
Item
Jobber Length Drill Bit
Grade
K30F
Shank Type
Straight
Number of Flutes
2
Measurement System
Fractional Inch
Finish
TiAlN
Primary Material Application ISO Code
H, K, M, N, P, S
Flute Type
Spiral
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Hardened Steel, Nickel, Stainless Steel, Steel, Titanium
Series
X.treme D12
Number of Coolant Holes
2
Secondary Material Application ISO Code
O
Drill Bit Point Type
Self-Centering Point
Sheeter Drill
No
Secondary Material Application
Composite

Description

Jobber Length Drill Bit, Drill Bit Size 9/32 in, Drill Bit Point Angle 140 Degrees , Carbide, TiAlN, Decimal Equivalent 0.2813, Fractional Inch, Drill Bit Point Type Self-Centering Point, Coolant Through, Number of Coolant Holes 2
