Shop WALTER

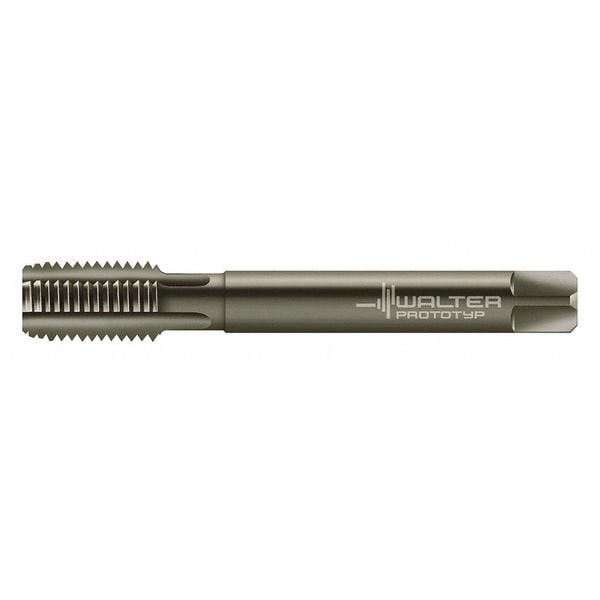

Pipe Tap, 1/4"-19, Plug, 4 Flutes, G

  • Mfr # E24364-G1/4

  • Zoro # G2510571

product price:  $88.15
/ea

Key Features

Tap Thread Size
1/4"-19
Tap Chamfer
Plug
Number of Flutes
4
Tap Thread Type
G
Standards
DIN 5156
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
E24364-G1/4
Zoro #
G2510571
UPC #
-
Country of Origin
Germany

Dimensions

Tap Thread Size
1/4"-19
Overall Length
3-15/16"
Shank Dia.
7/16"
Thread Length
13/16"
Tap Dimension Type
Inch
Pitch Diameter Limit
Not Rated
Tap Size
1/4"
Tap Length Standard
DIN 5156
Thread Size
1/4"-19
Shank Length
79.00 mm
Drill Bit Size
0.4650 in
Square Size
9.00mm
75% Thread Drill Size
29/64 in
Shank Diameter
11 mm
Square Length
9 mm
Square Width
9 mm

Details

Item
Pipe Tap
Tap Chamfer
Plug
Number of Flutes
4
Tap Thread Type
G
Standards
DIN 5156
Number of Pieces
1
Tap Finish
Black Oxide
Tap Material
Powdered Metal
List Number
E24364
Tap Style
Pipe
Thread Direction
Right Hand
Cutting Direction - Machining
Right Hand
Series
Paradur Eco CI
Measurement System
Fractional Inch
Helix Angle
0 Degrees
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper
Tap Shank Standard
DIN 5156
Thread Standard
BSPP
Threads per Inch
19
Primary Material Application ISO Code
K, N, O
Coolant Fed
Non-Coolant Through
Material Grade - Machining
NID
Extended Neck
Yes
Spiral Direction
Neutral
Powdered Metal Base Material
Cobalt

Description

Pipe and Conduit Thread Tap, Thread Size 1/4 In.-19, BSPP, Overall Length 100 mm, Powdered Metal, Black Oxide, Right Hand, Thread Length 21 mm, 75 Percent Thread Drill Size 29/64 in, Number of Flutes 4
