  11. Pipe Tap, 1/8"-27, Plug, 4 Flutes, NPT

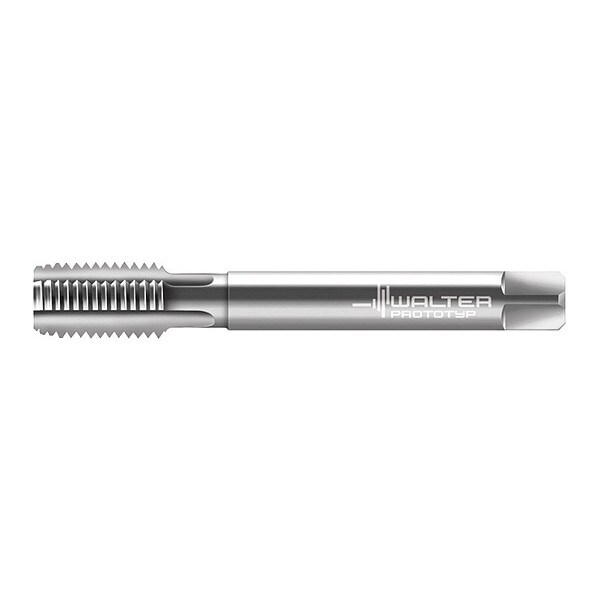

Walter Pipe Tap, 1/8"-27, Plug, 4 Flutes, NPT AC25361-NPT1/8 - main

Pipe Tap, 1/8"-27, Plug, 4 Flutes, NPT

  • Mfr # AC25361-NPT1/8

  • Zoro # G2566921

product price: $79.55
/ea
Free Shipping & Returns

Key Features

Tap Thread Size
1/8"-27
Tap Chamfer
Plug
Number of Flutes
4
Tap Thread Type
NPT
Tap Material
High Speed Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AC25361-NPT1/8
Zoro #
G2566921
UPC #
-
Country of Origin
India

Dimensions

Tap Thread Size
1/8"-27
Thread Length
9/16"
Pitch Diameter Limit
Not Rated
Shank Dia.
7/16"
Overall Length
3-9/16"
Tap Dimension Type
Inch
Tap Size
1/8"
Tap Length Standard
DIN
Shank Length
26.52 mm
75% Thread Drill Size
Q
Square Size
8.33mm
Drill Bit Size
0.4250 in
Thread Size
1/8"-27

Details

Item
Pipe Tap
Tap Chamfer
Plug
Number of Flutes
4
Tap Thread Type
NPT
Tap Material
High Speed Steel
Standards
DIN/ANSI
Thread Direction
Right Hand
Tap Finish
Uncoated
List Number
AC25361
Number of Pieces
1
Tap Style
Pipe
Cutting Direction - Machining
Right Hand
Series
Paradur H
Thread Standard
NPT
Helix Angle
0 Degrees
Measurement System
Fractional Inch
Secondary Material Application ISO Code
K, O
Threads per Inch
27
Secondary Material Application
Cast Iron, Composite
Material Grade - Machining
Vanadium High Speed Steel
Tap Shank Standard
ANSI
Primary Material Application
Aluminum, Brass, Bronze, Copper
Extended Neck
Yes
Primary Material Application ISO Code
N
Coolant Fed
Non-Coolant Through

Description

Pipe and Conduit Thread Tap, Thread Size 1/8 In.-27, NPT, Overall Length 90 mm, Cobalt High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 14 mm, 75 Percent Thread Drill Size Q, Number of Flutes 4
