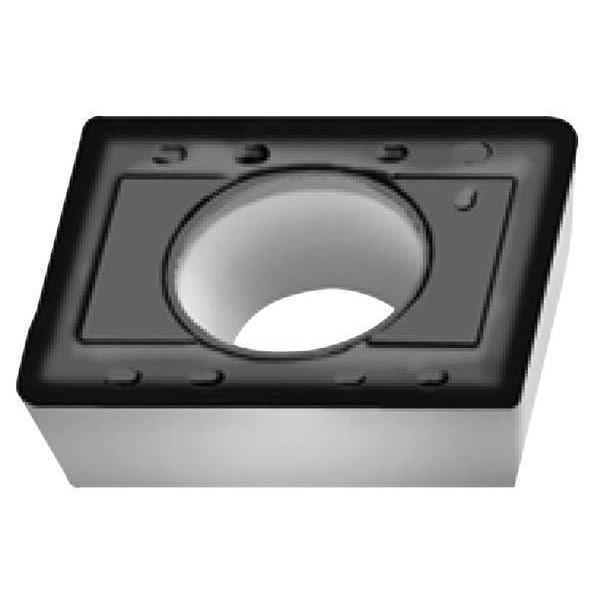

Walter Rectangle LPMT Carbide LPMT070304R-D51 WKP35S - main

Rectangle LPMT Carbide

  • Mfr # LPMT070304R-D51 WKP35S

  • Zoro # G8170276

product price: $17.29
/ea
Sold in multiples of 10 for $172.90

Key Features

Insert Style
LPMT
Insert Shape
Rectangle
Insert Size
70304
Insert Material
Carbide
Corner Radius
0.40mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LPMT070304R-D51 WKP35S
Zoro #
G8170276
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
70304
Corner Radius
0.40mm
Insert Thickness
0.125"
Nose Radius
0.016"
Width
6.35mm
Thickness
0.125 in
Cutting Edge Length
7.94mm

Details

Item
Diamond Milling Insert
Insert Style
LPMT
Insert Shape
Rectangle
Insert Material
Carbide
Insert Application
Medium
Hardened (H) Compatibility
No
Stainless (M) Compatibility
No
Inscribed Circle
1/4 in
Mounting Style
Screw Held
Cutting Direction
Right Hand
For Use With
F2237 Routing Cutter
Super Alloy (S) Compatibility
No
ANSI Number
LPMT070304R-D51 WKP35S
Cast Iron (K) Compatibility
Yes
Rake
Positive
Chip-Breaker
Yes
Coating
CVD
Non Ferrous (N) Compatibility
No
No. of Edges
2
Workpiece Compatibility
Cast Iron (K), Steel (P)
Steel (P) Compatibility
Yes
Grade
WKP35S
Finish - Machining
TiCN+Al2O3+TiCN
Hole Type
Countersink Hole
Number of Cutting Edges
2
Material - Machining
Carbide
Manufacturer Grade
WKP35S
Shape
Rectangular
Coating Process
CVD
Measurement System
Metric
Primary Material Application ISO Code
K, P
Chip-Breaker Code
D51
Primary Material Application
Cast Iron, Steel
Insert Holding Type
Screw Held
Chip-Breaker Style
10 Degrees Chipbreaker Groove
Clearance Angle
11 Degrees
ANSI Code
LPMT070304R-D51 WKP35S
Wiper Insert
Yes
ISO Number
LPMT070304R-D51 WKP35S
Cutting Application
Medium

Description

Diamond Milling Insert, Inscribed Circle 1/4 in, Positive
