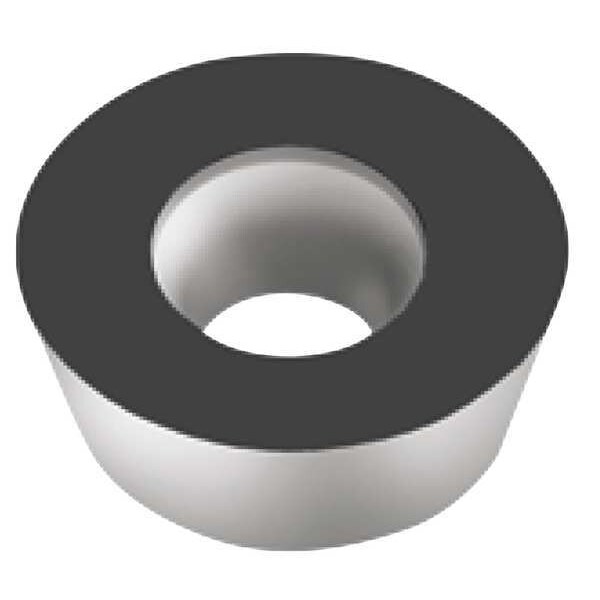

Walter Round RDHX Carbide RDHX2006M0T-A27 WKP35S - main

Round RDHX Carbide

  • Mfr # RDHX2006M0T-A27 WKP35S

  • Zoro # G8033855

product price: $34.55
/ea
Sold in multiples of 10 for $345.50

Key Features

Insert Style
RDHX
Insert Shape
Round
Insert Size
2006M0
Insert Material
Carbide
Corner Radius
10.00mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RDHX2006M0T-A27 WKP35S
Zoro #
G8033855
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
2006M0
Corner Radius
10.00mm
Nose Radius
0.394"
Insert Thickness
0.236"
Mounting Hole Dia.
5.50mm
Through Hole Inside Dia.
5.50mm
Cutting Edge Length
20.00mm
Thickness
0.236 in

Details

Item
Round Milling Insert
Insert Style
RDHX
Insert Shape
Round
Insert Material
Carbide
Non Ferrous (N) Compatibility
No
Super Alloy (S) Compatibility
No
Grade
WKP35S
Hardened (H) Compatibility
No
Insert Application
Roughing
No. of Edges
4
Cast Iron (K) Compatibility
Yes
Chip-Breaker
Yes
Cutting Direction
Right Hand
Workpiece Compatibility
Cast Iron (K), Steel (P)
Mounting Style
Screw Held
Inscribed Circle
0.7870 in
Stainless (M) Compatibility
No
Steel (P) Compatibility
Yes
Coating
CVD
Rake
Positive
ANSI Number
RDHX2006M0T-A27 WKP35S
For Use With
Walter Tool
ISO Number
RDHX2006M0T-A27 WKP35S
Coating Process
CVD
Number of Cutting Edges
4
ANSI Code
RDHX2006M0T-A27 WKP35S
Material - Machining
Carbide
Primary Material Application ISO Code
K, P
Primary Material Application
Cast Iron, Steel
Insert Holding Type
Screw Held
Chip-Breaker Code
A27
Cutting Edge
Chamfered
Feed Type
High
Clearance Angle
15 Degrees
Finish - Machining
TiCN+Al2O3+TiCN
Chip-Breaker Style
0 Degrees Chipbreaker Groove
Shape
Round
Manufacturer Grade
WKP35S
Cutting Application
Milling
Measurement System
Metric

Description

Round Milling Insert, Inscribed Circle 0.7870 in, Rake Positive
