Shop WALTER

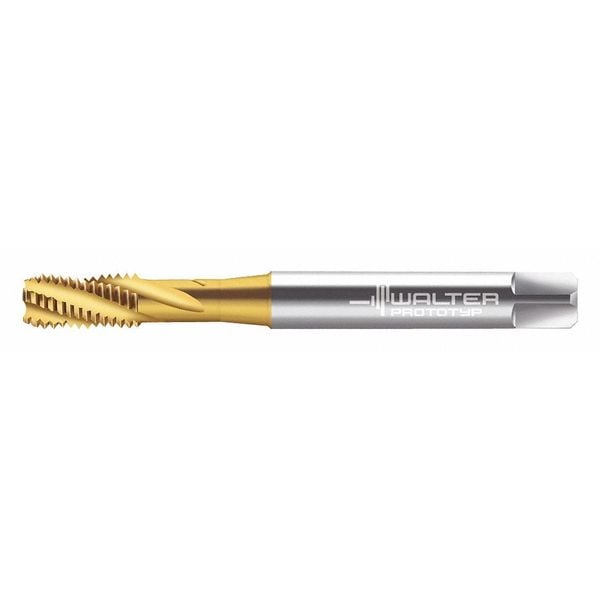

Spiral Flute Tap, Modified Bottoming, 4

  • Mfr # 2051315-M5

  • Zoro # G2893873

product price:  $54.69
/ea

Key Features

Overall Length
72.40mm
Number of Flutes
4
Tap Material
High Speed Steel
Shank Dia.
6.00mm
Tap Style
Spiral Flute
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2051315-M5
Zoro #
G2893873
UPC #
-
Country of Origin
India

Dimensions

Overall Length
72.40mm
Shank Dia.
6.00mm
Tap Size
M5
Tap Dimension Type
Metric
Thread Length
8.00mm
Tap Thread Size
M5-0.80
Drill Bit Size
4.20mm
75% Thread Drill Size
4.20mm
Square Size
4.90mm
65% Thread Drill Size
4.30 mm
Thread Size
M5x0.8
Shank Length
51.00 mm
55% Thread Drill Size
4.40 mm
Pitch Diameter Limit
6HX
Shank Diameter
6 mm
Square Length
4.9 mm
Square Width
4.9 mm
Wire Rope Length
70 mm

Details

Item
Spiral Flute Tap
Number of Flutes
4
Tap Material
High Speed Steel
Tap Style
Spiral Flute
Tap Chamfer
Modified Bottoming
Tap Finish
TiN
Thread Direction
Right Hand
Standards
DIN 371
Tap Thread Type
Metric Coarse
Cutting Direction - Machining
Right Hand
Series
Paradur Inox 25
Shank Type - Machining
Straight
Primary Material Application
Stainless Steel, Steel
Extended Neck
Yes
Thread Standard
Metric
Spiral Direction
Right Hand
Thread Limit
D3/D4
Thread Pitch
0.80mm
Features
For Long Chipping Materials
Measurement System
Metric
Coolant Fed
Non-Coolant Through
Helix Angle
25 Degrees
Tap Shank Standard
DIN 371
Primary Material Application ISO Code
M, P
List Number
2051315
Number of Pieces
1
Shank Type
Straight

Description

Spiral Flute Tap, Thread Size M5x0.8, Metric, Overall Length 70 mm, High Speed Steel, TiN, Thread Length 8 mm, 75 Percent Thread Drill Size 4.20mm, Thread Limit D3/D4, Thread Direction Right Hand, Number of Flutes 4
