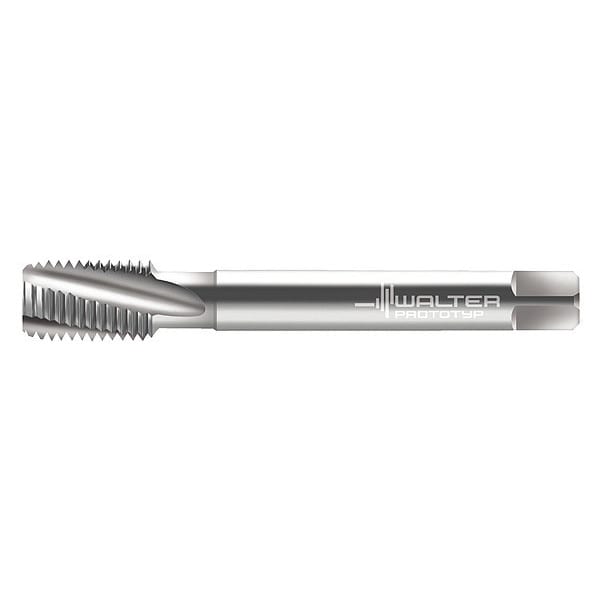

Walter Spiral Flute Tap, Plug, 3 23450-UNF5/16 - main

Spiral Flute Tap, Plug, 3

  • Mfr # 23450-UNF5/16

  • Zoro # G2554997

product price: $75.95
/ea
Free Shipping & Returns

Key Features

Overall Length
3-5/8"
Tap Style
Spiral Flute
Shank Dia.
1/4"
Tap Chamfer
Plug
Tap Dimension Type
Inch
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
23450-UNF5/16
Zoro #
G2554997
UPC #
-
Country of Origin
India

Dimensions

Overall Length
3-5/8"
Shank Dia.
1/4"
Tap Dimension Type
Inch
Tap Size
5/16"
Thread Length
1/2"
Tap Thread Size
5/16"-24
Pitch Diameter Limit
3B
Square Size
4.90mm
65% Thread Drill Size
J
Thread Size
5/16"-24
55% Thread Drill Size
9/32 in
Drill Bit Size
0.2720 in
Shank Length
23.00 mm
75% Thread Drill Size
I

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Plug
Tap Material
High Speed Steel
Number of Flutes
3
Tap Thread Type
UNF
Standards
DIN 2184-1
Tap Finish
Uncoated
Thread Direction
Right Hand
List Number
23450
Number of Pieces
1
Cutting Direction - Machining
Right Hand
Features
For Long Chipping Materials
Series
Paradur N
Extended Neck
Yes
Tap Shank Standard
DIN 2184-1
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
Primary Material Application ISO Code
K, N, P
Thread Limit
H3
Threads per Inch
24
Shank Type - Machining
Straight
Spiral Direction
Right Hand
Class of Fit
3B
Helix Angle
15 Degrees
Measurement System
Fractional Inch
Coolant Fed
Non-Coolant Through
Thread Standard
UNF

Description

Spiral Flute Tap, Thread Size 5/16 In.-24, UNF, Overall Length 90 mm, High Speed Steel, Bright (Uncoated), Thread Length 13 mm, 75 Percent Thread Drill Size I, Thread Limit H3, Class of Fit 3B, Thread Direction Right Hand, Number of Flutes 3
