Shop WALTER

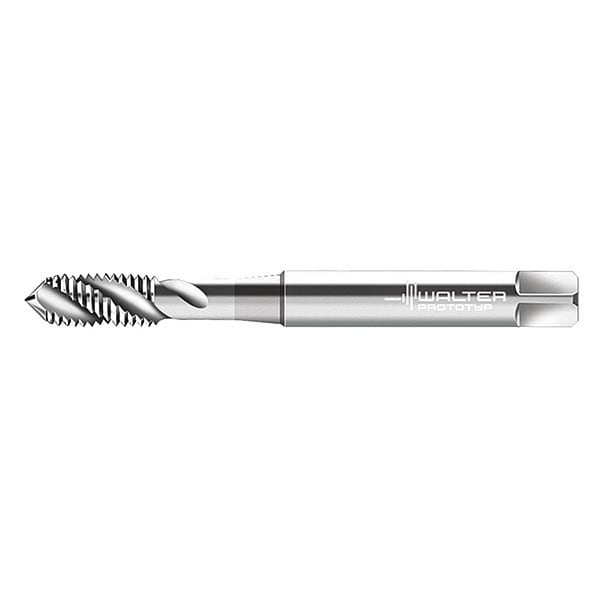

Spiral Flute Tap Plug, 3 Flutes

  • Mfr # P20539-M2

  • Zoro # G2523153

product price:  $61.19
/ea

Key Features

Overall Length
46.00mm
Tap Style
Spiral Flute
Shank Dia.
3.00mm
Tap Chamfer
Plug
Tap Dimension Type
Metric
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P20539-M2
Zoro #
G2523153
UPC #
-
Country of Origin
Germany

Dimensions

Overall Length
46.00mm
Shank Dia.
3.00mm
Tap Dimension Type
Metric
Tap Size
M2
Thread Length
4.00mm
Tap Thread Size
M2-0.40
Thread Size
M2x0.4
Shank Length
36.00 mm
65% Thread Drill Size
1.65 mm
Drill Bit Size
1.60mm
75% Thread Drill Size
1.60mm
55% Thread Drill Size
#51
Square Size
2.10mm
Pitch Diameter Limit
6G
Square Width
2.1 mm
Shank Diameter
2.8 mm
Square Length
2.1 mm

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Plug
Tap Material
High Speed Steel
Number of Flutes
3
Tap Thread Type
Metric Coarse
Thread Direction
Right Hand
Tap Finish
Bright (Uncoated)
Standards
DIN 371
Cutting Direction - Machining
Right Hand
Series
Paradur X·pert P
Helix Angle
45 Degrees
Primary Material Application ISO Code
P
Secondary Material Application ISO Code
N, O
Spiral Direction
Right Hand
Shank Type - Machining
Straight
Extended Neck
Yes
Primary Material Application
Steel
Tap Shank Standard
DIN 371
Secondary Material Application
Aluminum, Brass, Bronze, Copper
Thread Standard
Metric
Coolant Fed
Non-Coolant Through
Thread Limit
6G
Measurement System
Metric
Thread Pitch
0.40mm
Features
For Long Chipping Materials
List Number
P20539
Number of Pieces
1
Class of Fit
6G
Shank Type
Straight

Description

Spiral Flute Tap, Thread Size M2x0.4, Metric, Overall Length 45 mm, High Speed Steel, Bright (Uncoated), Thread Length 4 mm, 75 Percent Thread Drill Size 1.60mm, Thread Limit 6G, Class of Fit 6G, Thread Direction Right Hand, Number of Flutes 3
