Shop WALTER

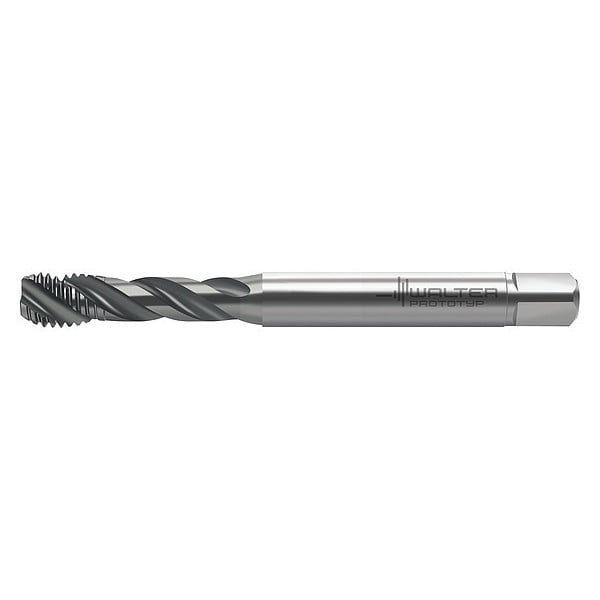

Spiral Flute Tap Plug, 3 Flutes

  • Mfr # TC121-M2-C0-WW60RG

  • Zoro # G2905758

product price:  $105.99
/ea
Free Shipping & Returns

Key Features

Overall Length
46.00mm
Tap Style
Spiral Flute
Shank Dia.
3.00mm
Tap Chamfer
Plug
Tap Dimension Type
Metric
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
TC121-M2-C0-WW60RG
Zoro #
G2905758
UPC #
-
Country of Origin
Germany

Dimensions

Overall Length
46.00mm
Shank Dia.
3.00mm
Tap Dimension Type
Metric
Tap Size
M2
Thread Length
4.00mm
Tap Thread Size
M2-0.40
Square Size
2.10mm
Shank Length
37.40 mm
Drill Bit Size
1.60mm
Thread Size
M2x0.4
55% Thread Drill Size
#51
75% Thread Drill Size
1.60mm
65% Thread Drill Size
1.65 mm
Pitch Diameter Limit
6HX
Shank Diameter
2.8 mm
Square Width
2.1 mm
Square Length
2.1 mm

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Plug
Tap Material
High Speed Steel
Number of Flutes
3
Thread Direction
Right Hand
Tap Finish
TiAlN
Standards
DIN 371
Tap Thread Type
Metric Coarse
Cutting Direction - Machining
Right Hand
Series
Supreme
Thread Limit
6HX
Tap Shank Standard
DIN 371
Primary Material Application ISO Code
P
Thread Standard
Metric
Secondary Material Application ISO Code
K, M, N
Extended Neck
Yes
Spiral Direction
Right Hand
Thread Pitch
0.40mm
Coolant Fed
Non-Coolant Through
Material Grade - Machining
WW60RG
Primary Material Application
Steel
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel
Shank Type - Machining
Straight
Measurement System
Metric
Helix Angle
40 Degrees
Number of Pieces
1
List Number
TC121-M-C0
Class of Fit
6HX
Shank Type
Straight

Description

Spiral Flute Tap, Thread Size M2x0.4, Metric, Overall Length 45 mm, High Speed Steel, TiAlN, Thread Length 4 mm, 75 Percent Thread Drill Size 1.60mm, Thread Limit 6HX, Class of Fit 6HX, Thread Direction Right Hand, Number of Flutes 3
