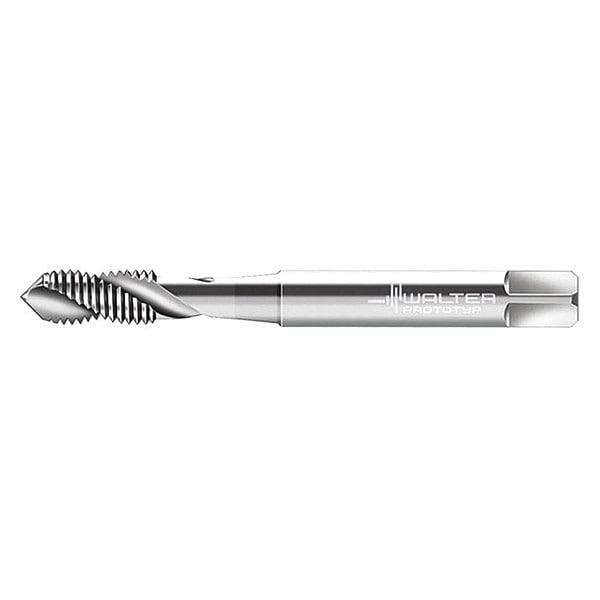

Walter Spiral Flute Tap, Plug, 3 N205166-M8 - main

Spiral Flute Tap, Plug, 3

  • Mfr # N205166-M8

  • Zoro # G2519680

product price: $56.99
/ea

Key Features

Overall Length
91.50mm
Tap Style
Spiral Flute
Shank Dia.
8.00mm
Tap Chamfer
Plug
Tap Dimension Type
Metric
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N205166-M8
Zoro #
G2519680
UPC #
-
Country of Origin
Germany

Dimensions

Overall Length
91.50mm
Shank Dia.
8.00mm
Tap Dimension Type
Metric
Tap Size
M8
Thread Length
12.00mm
Tap Thread Size
M8-1.25
Shank Length
55.00 mm
55% Thread Drill Size
7.10 mm
Thread Size
M8x1.25
Square Size
6.20mm
65% Thread Drill Size
I
Drill Bit Size
6.80mm
75% Thread Drill Size
H
Pitch Diameter Limit
6H

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Plug
Tap Material
High Speed Steel
Number of Flutes
3
Standards
DIN 371
Tap Thread Type
Metric Coarse
Tap Finish
Uncoated
Thread Direction
Right Hand
Cutting Direction - Machining
Right Hand
Series
Paradur X·pert N
Primary Material Application ISO Code
N
Shank Type - Machining
Straight
Extended Neck
Yes
Spiral Direction
Right Hand
Tap Shank Standard
DIN 371
Primary Material Application
Aluminum, Brass, Bronze, Copper
Secondary Material Application ISO Code
O, S
Thread Standard
Metric Coarse
Measurement System
Metric
Secondary Material Application
Composite, Nickel, Titanium
Helix Angle
35 Degrees
Coolant Fed
Non-Coolant Through
Thread Limit
D4, D5
Thread Pitch
1.25mm
List Number
N205166
Number of Pieces
1

Description

Spiral Flute Tap, Thread Size M8x1.25, Metric, Overall Length 90 mm, High Speed Steel, Bright (Uncoated), Thread Length 12 mm, 75 Percent Thread Drill Size H, Thread Limit D4/D5, Thread Direction Right Hand, Number of Flutes 3
