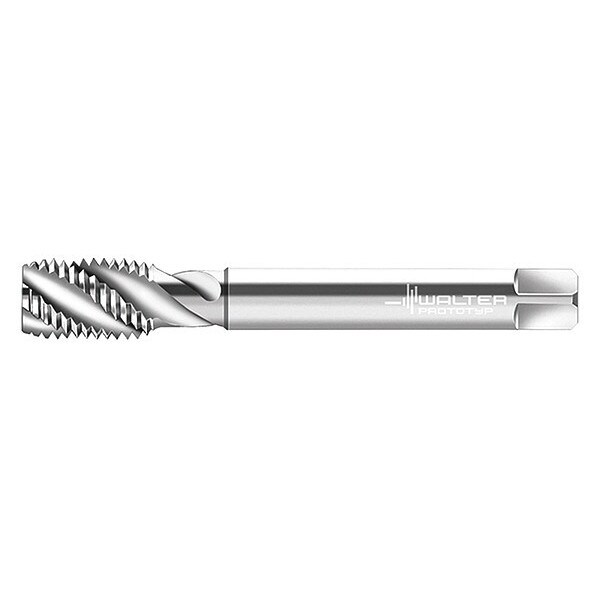

Spiral Flute Tap, Plug, 3
Mfr # P23569-UNF7/16
Zoro # G2902833
product price:Â
$
88.85
/ea
Key Features
Overall Length
3-15/16"
Tap Style
Spiral Flute
Shank Dia.
5/16"
Tap Chamfer
Plug
Tap Dimension Type
Inch
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- P23569-UNF7/16
- Zoro #
- G2902833
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 3-15/16"
- Shank Dia.
- 5/16"
- Tap Dimension Type
- Inch
- Tap Size
- 7/16"
- Thread Length
- 9/16"
- Tap Thread Size
- 7/16"-20
- Drill Bit Size
- 0.3900 in
- 55% Thread Drill Size
- 10.20 mm
- 75% Thread Drill Size
- 9.95mm
- Square Size
- 6.20mm
- 65% Thread Drill Size
- 10.00 mm
- Thread Size
- 7/16"-20
- Shank Length
- 85.00 mm
- Pitch Diameter Limit
- 2B
- Square Length
- 6.2 mm
- Square Width
- 6.2 mm
- Shank Diameter
- 8 mm
- Wire Rope Length
- 100 mm
- Length
- 100 mm
Description
Spiral Flute Tap, Thread Size 7/16 In.-20, UNF, Overall Length 100 mm, High Speed Steel, Bright (Uncoated), Thread Length 15 mm, 75 Percent Thread Drill Size 9.95mm, Thread Limit H4/H5, Class of Fit 2B, Thread Direction Right Hand, Number of Flutes 3
