Shop WALTER

Spiral Flute Tap, Plug, 3

  • Mfr # S2051302-M3

  • Zoro # G2904078

product price:  $52.19
/ea

Key Features

Overall Length
71.00mm
Tap Style
Spiral Flute
Shank Dia.
6.00mm
Tap Chamfer
Plug
Tap Dimension Type
Metric
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
S2051302-M3
Zoro #
G2904078
UPC #
-
Country of Origin
India

Dimensions

Overall Length
71.00mm
Shank Dia.
6.00mm
Tap Dimension Type
Metric
Tap Size
M3
Thread Length
5.00mm
Tap Thread Size
M3-0.50
55% Thread Drill Size
#37
Shank Length
59.00 mm
Square Size
4.90mm
65% Thread Drill Size
#38
75% Thread Drill Size
2.50mm
Drill Bit Size
2.50mm
Thread Size
M3x0.5
Pitch Diameter Limit
6HX
Shank Diameter
6 mm
Square Width
4.9 mm
Square Length
4.9 mm

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Plug
Tap Material
High Speed Steel
Number of Flutes
3
Tap Finish
THL
Standards
DIN 371
Tap Thread Type
Metric Coarse
Thread Direction
Right Hand
Cutting Direction - Machining
Right Hand
Series
Paradur Synchrospeed
Features
For Long Chipping Materials
Helix Angle
40 Degrees
Coolant Fed
Coolant Through
Secondary Material Application ISO Code
N, O, S
Primary Material Application
Cast Iron, Stainless Steel, Steel
Tap Shank Standard
DIN 371
Primary Material Application ISO Code
K, M, P
Extended Neck
Yes
Measurement System
Metric
Spiral Direction
Right Hand
Thread Pitch
0.50mm
Secondary Material Application
Aluminum, Brass, Bronze, Copper, Nickel, Titanium
Thread Standard
Metric
Shank Type - Machining
Weldon Flat
Thread Limit
6HX
List Number
S2051302
Number of Pieces
1
Class of Fit
6HX
Shank Type
Weldon Flat

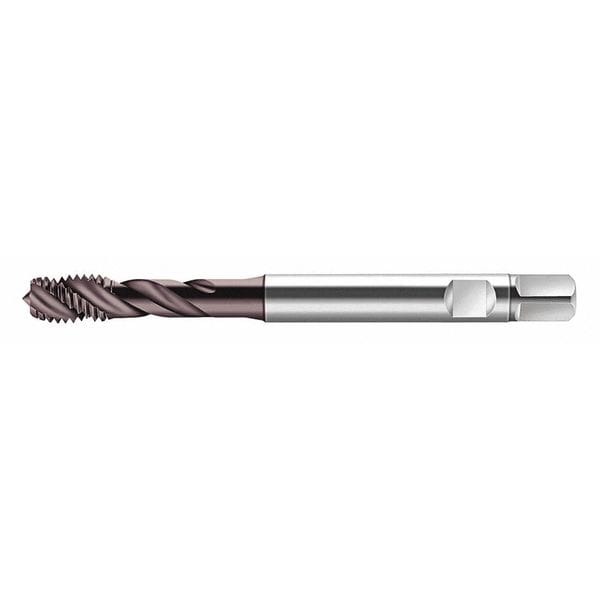

Description

Spiral Flute Tap, Thread Size M3x0.5, Metric, Overall Length 70 mm, High Speed Steel, THL, Thread Length 5 mm, 75 Percent Thread Drill Size 2.50mm, Thread Limit 6HX, Class of Fit 6HX, Thread Direction Right Hand, Number of Flutes 3
