Shop WALTER

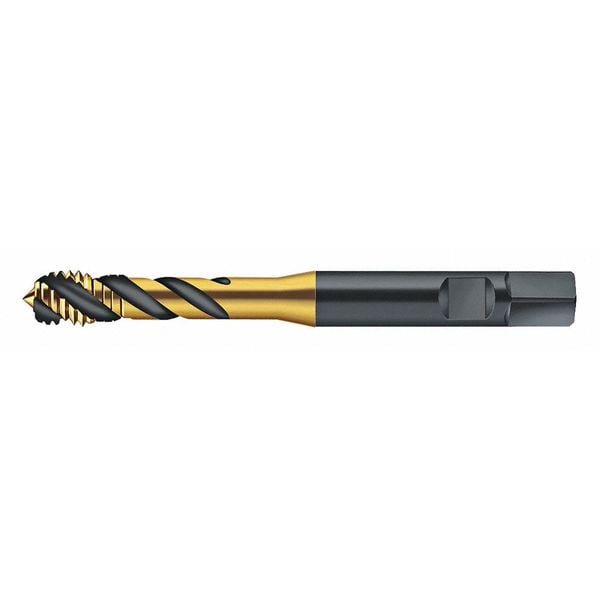

Spiral Flute Tap, Plug, 3

  • Mfr # S2156305-M10X1

  • Zoro # G2905100

product price:  $115.99
/ea
Free Shipping & Returns

Key Features

Overall Length
91.00mm
Tap Style
Spiral Flute
Shank Dia.
10.00mm
Tap Chamfer
Plug
Tap Dimension Type
Metric
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
S2156305-M10X1
Zoro #
G2905100
UPC #
-
Country of Origin
India

Dimensions

Overall Length
91.00mm
Shank Dia.
10.00mm
Tap Dimension Type
Metric
Tap Size
M10
Thread Length
10.00mm
Tap Thread Size
M10-1.00
Square Size
8.00mm
Thread Size
M10x1
65% Thread Drill Size
23/64 in
75% Thread Drill Size
9.00mm
Shank Length
51.00 mm
55% Thread Drill Size
9.25 mm
Drill Bit Size
9.00mm
Pitch Diameter Limit
6HX
Shank Diameter
10 mm
Square Length
8 mm
Square Width
8 mm

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Plug
Tap Material
High Speed Steel
Number of Flutes
3
Tap Thread Type
Metric Fine
Thread Direction
Right Hand
Tap Finish
TiN/VAP
Standards
DIN 371
Cutting Direction - Machining
Right Hand
Series
Prototex Synchrospeed
Thread Limit
6HX
Shank Type - Machining
Weldon Flat
Spiral Direction
Right Hand
Thread Pitch
1.00mm
Thread Standard
Metric
Primary Material Application ISO Code
K, M, P
Tap Shank Standard
DIN 371
Material Grade - Machining
TIN/VAP
Secondary Material Application ISO Code
N, O, S
Secondary Material Application
Aluminum, Brass, Bronze, Copper, Nickel, Titanium
Primary Material Application
Cast Iron, Stainless Steel, Steel
Features
For long-chipping materials, Only for synchronous machining (rigid tapping)
Measurement System
Metric
Helix Angle
40 Degrees
Coolant Fed
Non-Coolant Through
Extended Neck
Yes
Number of Pieces
1
List Number
S2156305
Shank Type
Weldon Flat
Class of Fit
6HX

Description

Spiral Flute Tap, Thread Size M10x1, Metric, Overall Length 90 mm, High Speed Steel, TiN/VAP, Thread Length 10.5 mm, 75 Percent Thread Drill Size 9.00mm, Thread Limit 6HX, Class of Fit 6HX, Thread Direction Right Hand, Number of Flutes 3
