Shop WALTER

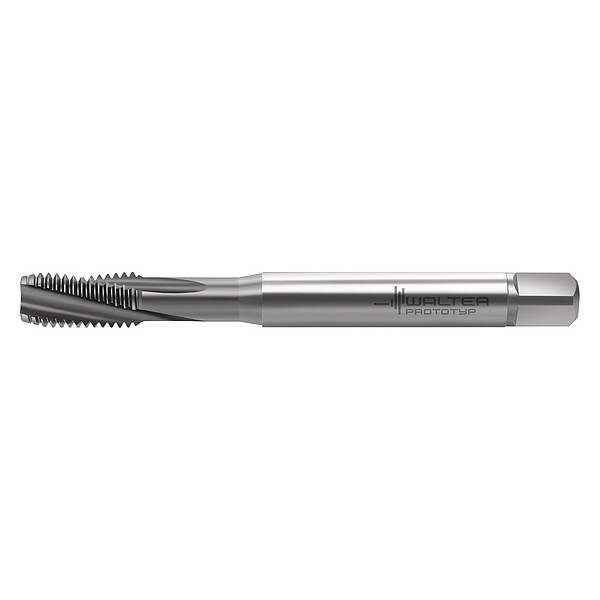

Spiral Flute Tap, Plug, 3

  • Mfr # TC122-M8-C0-WW60BC

  • Zoro # G2905983

product price:
$
126.99
/ea
Free Shipping & Returns

Key Features

Overall Length
93.00mm
Tap Style
Spiral Flute
Shank Dia.
8.00mm
Tap Chamfer
Plug
Tap Dimension Type
Metric
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
TC122-M8-C0-WW60BC
Zoro #
G2905983
UPC #
-
Country of Origin
Germany
Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Plug
Tap Material
High Speed Steel
Number of Flutes
3
Tap Finish
TiCN
Thread Direction
Right Hand
Standards
DIN 371
Tap Thread Type
Metric Coarse
Cutting Direction - Machining
Right Hand
Series
Supreme
Thread Standard
Metric
Features
For Long Chipping Materials
Measurement System
Metric
Secondary Material Application ISO Code
K
Primary Material Application
Steel
Extended Neck
Yes
Material Grade - Machining
WW60BC
Helix Angle
15 Degrees
Shank Type - Machining
Straight
Coolant Fed
Non-Coolant Through
Primary Material Application ISO Code
P
Tap Shank Standard
DIN 371
Secondary Material Application
Cast Iron
Spiral Direction
Right Hand
Thread Pitch
1.25mm
Thread Limit
6HX
List Number
TC122-M-C0
Number of Pieces
1
Shank Type
Straight
Class of Fit
6HX

Description

Spiral Flute Tap, Thread Size M8x1.25, Metric, Overall Length 90 mm, High Speed Steel, TiCN, Thread Length 18 mm, 75 Percent Thread Drill Size H, Thread Limit 6HX, Class of Fit 6HX, Thread Direction Right Hand, Number of Flutes 3
