Walter

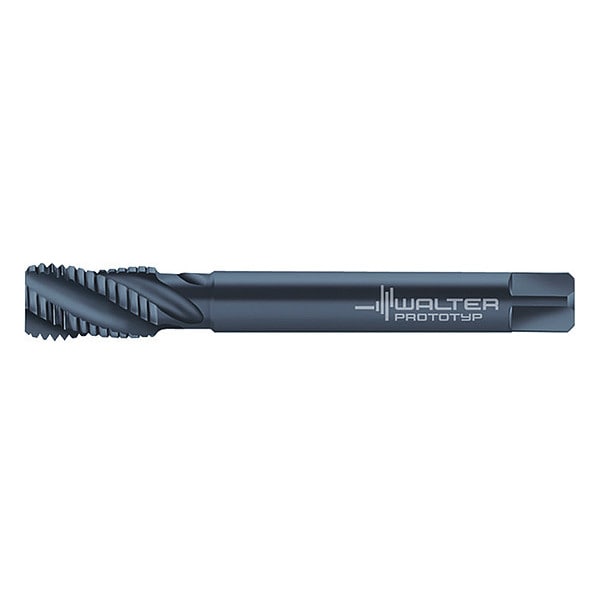

Spiral Flute Tap Plug, 4 Flutes

product price: $108.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tap Thread Size 5/8"-11
  • Tap Chamfer Modified Bottoming, Semi-Bottoming
  • Number of Flutes 4
  • Tap Finish VAP
  • Overall Length 110.00 mm
See all product information

Product Information

Dimensions

Tap Thread Size 5/8"-11
Overall Length 110.00 mm
Thread Length 20.00 mm
Shank Dia. 12.00 mm
Tap Size 5/8"
75% Thread Drill Size 13.60mm
Thread Size 5/8"-11
Square Size 9.00mm
55% Thread Drill Size 14.20 mm
Shank Length 42.00 mm
Drill Bit Size 0.5310 in
65% Thread Drill Size 13.90 mm

Details

Item Spiral Flute Tap
Tap Chamfer Modified Bottoming, Semi-Bottoming
Number of Flutes 4
Tap Finish VAP
Tap Style Spiral Flute
Standards DIN 2184-1
Tap Material High Speed Steel
Thread Direction Right Hand
Cutting Direction - Machining Right Hand
Series Paradur X·pert M
Class of Fit 2B
Shank Type - Machining Straight
Secondary Material Application Steel
Secondary Material Application ISO Code P
Thread Standard UNC
Tap Shank Standard DIN 2184-1
Spiral Direction Right Hand
Threads per Inch 11
Extended Neck Yes
Primary Material Application Stainless Steel
Primary Material Application ISO Code M
Thread Limit H5, H6
Material Grade - Machining VAP
Helix Angle 40 Degrees
Coolant Fed Non-Coolant Through
Features For Long Chipping Materials
Measurement System Fractional Inch

Description

Spiral Flute Tap, Thread Size 5/8 In.-11, UNC, Overall Length 110.00 mm, High Speed Steel, VAP, Thread Length 20.00 mm, 75 Percent Thread Drill Size 13.60mm, Thread Limit H5, H6, Class of Fit 2B, Thread Direction Right Hand, Number of Flutes 4
