Shop WALTER

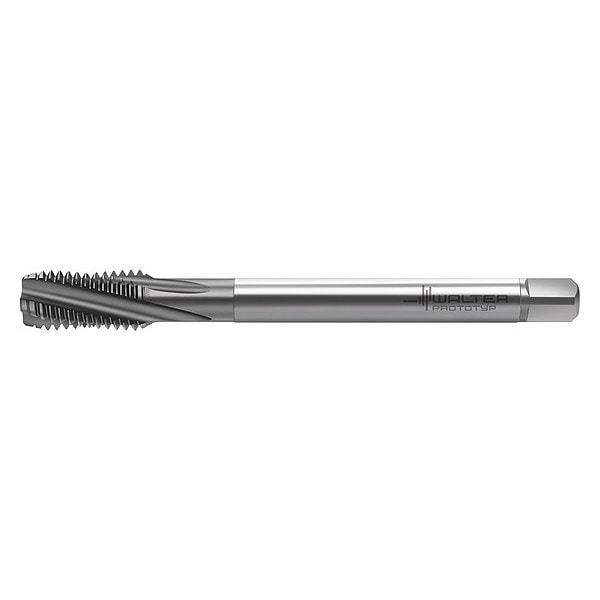

Spiral Flute Tap, Plug 4 Flutes

  • Mfr # TC122-M16-L1-WW60BC
  • Zoro # G2905852
product price:
$
287.99
/ea
Free Shipping & Returns

Key Features

Overall Length
110.00mm
Number of Flutes
4
Tap Material
High Speed Steel
Shank Dia.
12.00mm
Tap Style
Spiral Flute
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
TC122-M16-L1-WW60BC
Zoro #
G2905852
UPC #
-
Country of Origin
Germany
Item
Spiral Flute Tap
Number of Flutes
4
Tap Material
High Speed Steel
Tap Style
Spiral Flute
Tap Chamfer
Plug
Standards
DIN 376
Tap Finish
TiCN
Thread Direction
Right Hand
Tap Thread Type
Metric Coarse
Cutting Direction - Machining
Right Hand
Series
Supreme
Material Grade - Machining
WW60BC
Tap Shank Standard
DIN 376
Helix Angle
15 Degrees
Thread Limit
6HX
Extended Neck
Yes
Spiral Direction
Right Hand
Secondary Material Application ISO Code
K
Primary Material Application
Steel
Shank Type - Machining
Straight
Coolant Fed
Non-Coolant Through
Primary Material Application ISO Code
P
Measurement System
Metric
Features
For Long Chipping Materials
Thread Standard
Metric
Thread Pitch
2.00mm
Secondary Material Application
Cast Iron
Number of Pieces
1
List Number
TC122-M-L1
Class of Fit
6HX
Shank Type
Straight

Description

Spiral Flute Tap, Thread Size M16x2, Metric, Overall Length 110 mm, High Speed Steel, TiCN, Thread Length 25 mm, 75 Percent Thread Drill Size 14.00mm, Thread Limit 6HX, Class of Fit 6HX, Thread Direction Right Hand, Number of Flutes 4
