Shop WALTER

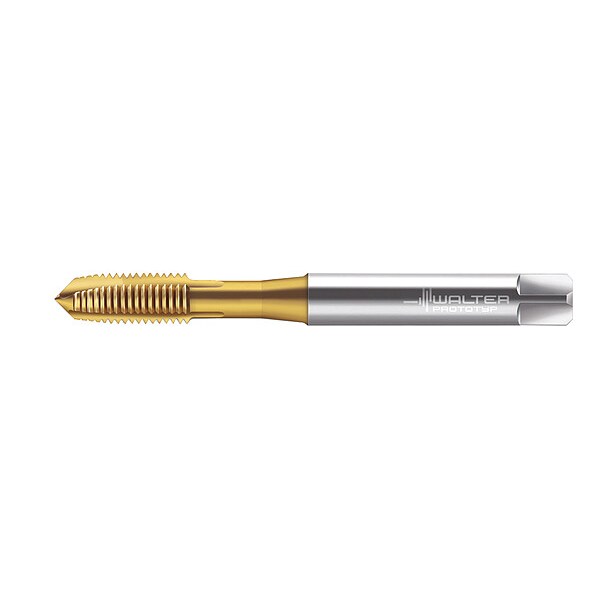

Spiral Point Tap, Bottoming, 3

  • Mfr # TC216-M8-C0-WY80AA

  • Zoro # G4132296

product price:  $34.85
/ea

Key Features

Shank Dia.
8.00 mm
Tap Material
High Speed Steel
Tap Style
Spiral Point
Tap Size
M8
Tap Chamfer
Bottoming
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TC216-M8-C0-WY80AA
Zoro #
G4132296
UPC #
-
Country of Origin
India

Dimensions

Shank Dia.
8.00 mm
Tap Size
M8
Tap Dimension Type
Metric
Overall Length
90 mm
Tap Thread Size
M8-1.25
Drill Bit Size
6.80 mm
Thread Length
18 mm
65% Thread Drill Size
I
75% Thread Drill Size
H
Thread Size
M8x1.25
Square Size
6.20 mm
55% Thread Drill Size
7.10 mm
Shank Length
55.00 mm
Shank Diameter
8 mm
Square Width
6.2 mm
Square Length
6.2 mm

Details

Item
Spiral Point Tap
Tap Material
High Speed Steel
Tap Style
Spiral Point
Tap Chamfer
Bottoming
Number of Flutes
3
Thread Direction
Right Hand
Tap Thread Type
Metric
Tap Finish
TiN
Series
Perform
Cutting Direction - Machining
Right Hand
Measurement System
Metric
Thread Standard
Metric
Shank Type - Machining
Straight
Material Grade - Machining
WY80AA
Primary Material Application ISO Code
K, M, N, P
Extended Neck
Yes
Spiral Direction
Neutral
Coolant Fed
Non-Coolant Through
Thread Limit
D4/D5
Thread Pitch
1.25 mm
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
Class of Fit
H3
Helix Angle
0 Degrees
Shank Type
Straight

Description

Spiral Point Tap, Thread Size M8x1.25, Metric, Overall Length 90 mm, High Speed Steel, TiN, Right Hand, Thread Length 18 mm, 75 Percent Thread Drill Size H, Thread Limit D4/D5, Class of Fit H3, Number of Flutes 3
