Shop WALTER

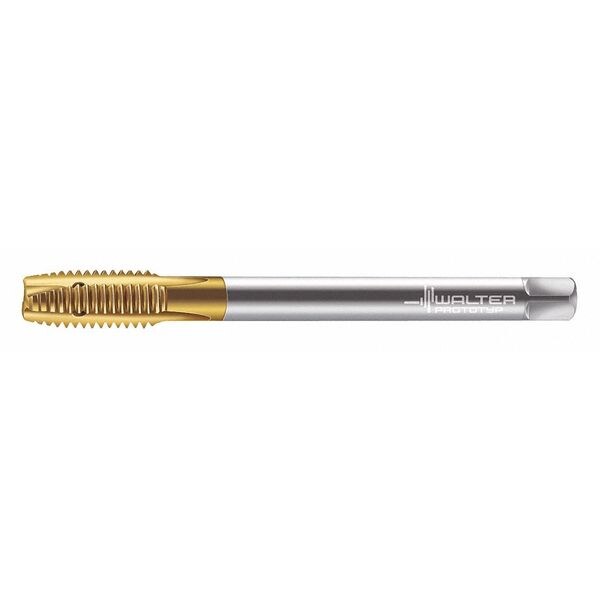

Spiral Point Tap, Taper 3 Flutes

  • Mfr # 7026345-M16

  • Zoro # G2555959

product price:  $297.99
/ea
Free Shipping & Returns

Key Features

Shank Dia.
12.00mm
Tap Material
High Speed Steel
Tap Style
Spiral Point
Tap Size
M16
Tap Chamfer
Taper
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7026345-M16
Zoro #
G2555959
UPC #
-
Country of Origin
Germany

Dimensions

Shank Dia.
12.00mm
Tap Size
M16
Tap Dimension Type
Metric
Overall Length
110.00mm
Thread Length
25.00mm
Pitch Diameter Limit
6H
Tap Thread Size
M16-2
Square Size
9.00 mm
Shank Length
42.00 mm
Thread Size
M16x2
75% Thread Drill Size
14.00 mm
65% Thread Drill Size
9/16 in
Drill Bit Size
14.00 mm
55% Thread Drill Size
14.50 mm
Shank Diameter
12 mm
Square Width
9 mm
Square Length
9 mm
Wire Rope Length
110 mm

Details

Item
Spiral Point Tap
Tap Material
High Speed Steel
Tap Style
Spiral Point
Tap Chamfer
Taper
Number of Flutes
3
Number of Pieces
1
Tap Finish
TiN
List Number
7026345
Thread Direction
Right Hand
Tap Thread Type
Metric Coarse
Cutting Direction - Machining
Right Hand
Series
Prototex Sprint
Measurement System
Metric
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
Secondary Material Application ISO Code
M, N, P
Coolant Fed
Coolant Through
Thread Standard
Metric
Thread Pitch
2.00 mm
Thread Limit
D5/D6
Shank Type - Machining
Straight
Spiral Direction
Neutral
Extended Neck
Yes
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Primary Material Application ISO Code
K, M, N, P
Class of Fit
2B
Helix Angle
0 Degrees
Shank Type
Straight

Description

Spiral Point Tap, Thread Size M16x2, Metric, Overall Length 110 mm, High Speed Steel, TiN, Right Hand, Thread Length 25 mm, 75 Percent Thread Drill Size 14.00 mm, Thread Limit D5/D6, Class of Fit 2B, Number of Flutes 3
