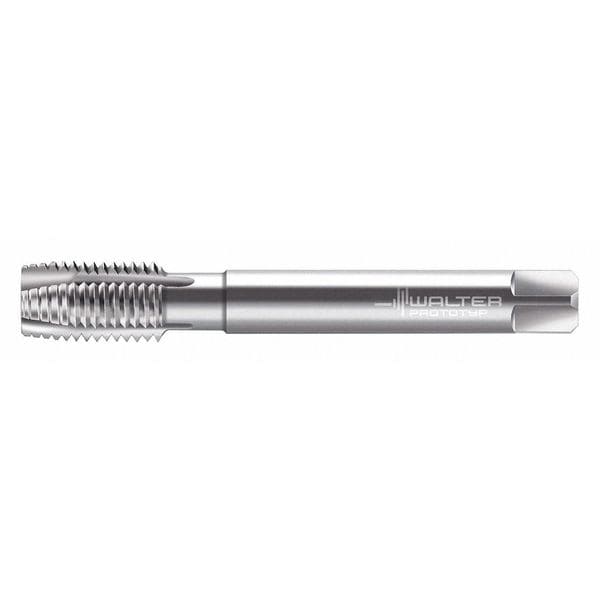

Spiral Point Tap, Taper 4 Flutes
- Mfr # P28360-BSW1
- Zoro # G2903579
product price:Â
$
237.99
/ea
Free Shipping & Returns
Key Features
Tap Style
Spiral Point
Tap Size
1"
Tap Dimension Type
Inch
Tap Material
High Speed Steel
Tap Chamfer
Taper
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- P28360-BSW1
- Zoro #
- G2903579
- UPC #
- -
- Country of Origin
- Germany
- Item
- Spiral Point Tap
- Tap Style
- Spiral Point
- Tap Material
- High Speed Steel
- Tap Chamfer
- Taper
- Number of Flutes
- 4
- Tap Finish
- Bright (Uncoated)
- Thread Direction
- Right Hand
- Tap Thread Type
- BSW
- Cutting Direction - Machining
- Right Hand
- Primary Material Application ISO Code
- N, O
- Thread Standard
- BSW
- Primary Material Application
- Steel
- Coolant Fed
- Non-Coolant Through
- Shank Type - Machining
- Straight
- Threads per Inch
- 8
- Series
- Prototex X·pert P
- Extended Neck
- Yes
- Measurement System
- Fractional Inch
- Spiral Direction
- Neutral
- Helix Angle
- 0 Degrees
- Number of Pieces
- 1
- List Number
- P28360
- Shank Type
- Straight
Dimensions
- Tap Size
- 1"
- Tap Dimension Type
- Inch
- Overall Length
- 6-5/16"
- Tap Thread Size
- 1"-8
- Shank Dia.
- 11/16"
- Thread Length
- 1-7/16"
- 55% Thread Drill Size
- 29/32 in
- 65% Thread Drill Size
- 57/64 in
- Thread Size
- 1"-8
- Shank Length
- 47.00 mm
- 75% Thread Drill Size
- 22.25 mm
- Square Size
- 14.50 mm
- Drill Bit Size
- 0.8660 in
- Pitch Diameter Limit
- Not Rated
- Shank Diameter
- 18 mm
- Square Length
- 14.5 mm
- Square Width
- 14.5 mm
- Wire Rope Length
- 160 mm
- Length
- 160 mm
Description
Spiral Point Tap, Thread Size 1 In.-8, BSW, Overall Length 160 mm, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 36 mm, 75 Percent Thread Drill Size 22.25 mm, Number of Flutes 4
