  11. Straight Flute Hand Tap, M22-1.50, Plug, 5 Flutes, Metric Fine

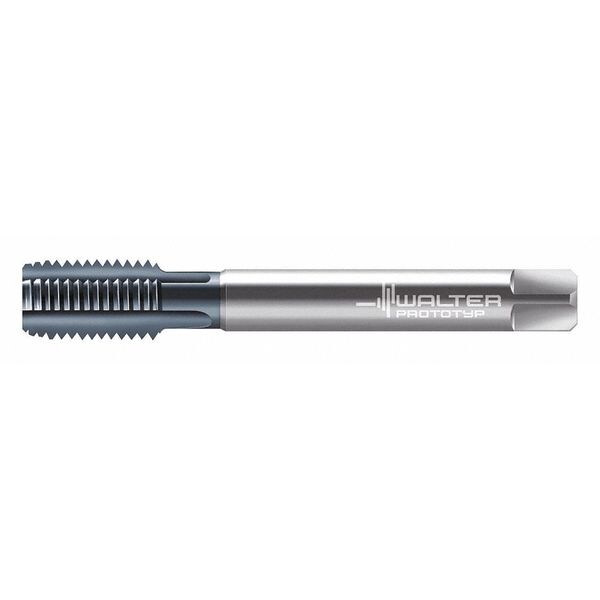

Walter Straight Flute Hand Tap, M22-1.50, Plug, 5 Flutes, Metric Fine E2136416-M22X1.5 - main

Straight Flute Hand Tap, M22-1.50, Plug, 5 Flutes, Metric Fine

  • Mfr # E2136416-M22X1.5

  • Zoro # G2509698

product price: $292.99
/ea
Free Shipping & Returns

Key Features

Tap Thread Size
M22-1.50
Tap Chamfer
Plug
Number of Flutes
5
Tap Thread Type
Metric Fine
Standards
DIN 374
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
E2136416-M22X1.5
Zoro #
G2509698
UPC #
-
Country of Origin
Germany

Dimensions

Tap Thread Size
M22-1.50
Thread Length
24.00mm
Pitch Diameter Limit
6HX
Shank Dia.
18.00mm
Overall Length
125.00mm
Tap Dimension Type
Metric
Tap Size
M22
Tap Length Standard
DIN 374
55% Thread Drill Size
20.90 mm
65% Thread Drill Size
20.75 mm
Square Size
14.50 mm
75% Thread Drill Size
20.50 mm
Thread Size
M22x1.5
Shank Length
47.00 mm

Details

Item
Straight Flute Hand Tap
Tap Chamfer
Plug
Number of Flutes
5
Tap Thread Type
Metric Fine
Standards
DIN 374
Thread Direction
Right Hand
List Number
E2136416
Tap Style
Straight Flute (Hand)
Tap Finish
TiCN
Number of Pieces
1
Tap Material
High Speed Steel
Cutting Direction - Machining
Right Hand
Series
Paradur Eco CI
Extended Neck
Yes
Coolant Fed
Non-Coolant Through
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Composite, Copper
Tap Shank Standard
DIN 374
Thread Pitch
1.50mm
Primary Material Application ISO Code
K, N, O
Shank Type - Machining
Straight
Thread Limit
6HX
Thread Standard
Metric Fine
Measurement System
Metric
Spiral Direction
Right Hand
Helix Angle
0 Degrees

Description

Straight Flute Tap, Thread Size M22x1.5, Metric, Modified Bottoming, Overall Length 125 mm, High Speed Steel, TiCN, Right Hand, Thread Length 24 mm, 75 Percent Thread Drill Size 20.50 mm, Thread Limit 6HX
