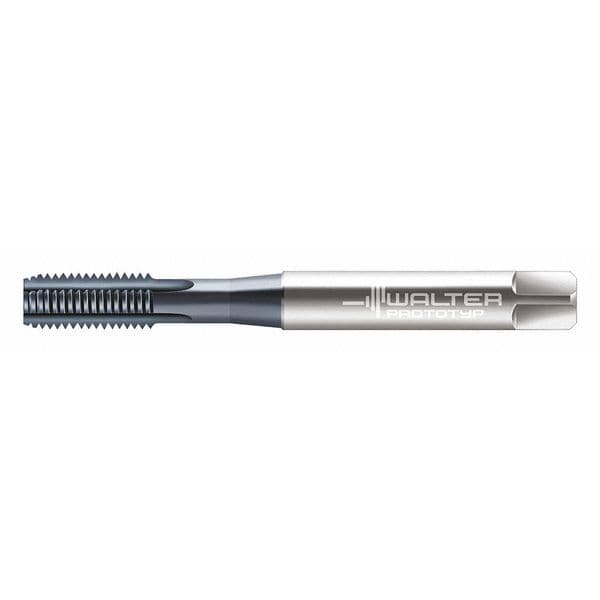

Straight Flute Hand Tap, Modified Bottoming, 3
Mfr # E2031466-M4
Zoro # G2508952
product price:Â
$
52.99
/ea
Key Features
Shank Dia.
4.50mm
Tap Chamfer
Modified Bottoming
Tap Dimension Type
Metric
Tap Material
High Speed Steel
Tap Size
M4
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- E2031466-M4
- Zoro #
- G2508952
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Shank Dia.
- 4.50mm
- Tap Dimension Type
- Metric
- Tap Size
- M4
- Overall Length
- 64.60mm
- Tap Thread Size
- M4-0.70
- Pitch Diameter Limit
- 6HX
- Thread Length
- 12.00mm
- 55% Thread Drill Size
- 3.50 mm
- Thread Size
- M4x0.7
- Tap Length Standard
- DIN 371
- 75% Thread Drill Size
- 3.30 mm
- Shank Length
- 42.00 mm
- 65% Thread Drill Size
- 3.40 mm
- Square Size
- 3.40 mm
- Square Length
- 3.4 mm
- Shank Diameter
- 4.5 mm
- Square Width
- 3.4 mm
- Wire Rope Length
- 63 mm
- Length
- 63 mm
Description
Straight Flute Tap, Thread Size M4x0.7, Metric, Bottoming, Overall Length 63 mm, High Speed Steel, TiCN, Right Hand, Thread Length 12 mm, 75 Percent Thread Drill Size 3.30 mm
