Shop WALTER

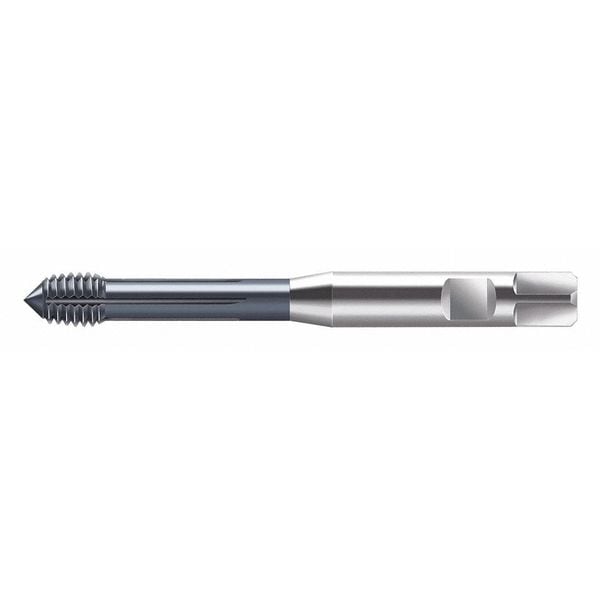

Thread Forming Tap, M4-0.70, Plug, TiCN, 3 Flutes

  • Mfr # S2061306-M4

  • Zoro # G2904708

product price:  $95.89
/ea

Key Features

Tap Thread Size
M4-0.70
Tap Chamfer
Plug
Tap Finish
TiCN
Number of Flutes
3
Tap Style
Thread Forming
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
S2061306-M4
Zoro #
G2904708
UPC #
-
Country of Origin
Germany

Dimensions

Tap Thread Size
M4-0.70
Shank Dia.
6.00mm
Tap Dimension Type
Metric
Pitch Diameter Limit
6HX
Thread Length
4.00mm
Overall Length
72.00mm
Tap Size
M4
Square Size
4.90 mm
Thread Size
M4x0.7
Shank Length
49.00 mm
55% Thread Drill Size
3.50 mm
75% Thread Drill Size
3.30 mm
65% Thread Drill Size
3.40 mm
Shank Diameter
6 mm
Square Width
4.2 mm
Square Length
4.2 mm

Details

Item
Thread Forming Tap
Tap Chamfer
Plug
Tap Finish
TiCN
Number of Flutes
3
Tap Style
Thread Forming
Number of Pieces
1
Tap Material
High Speed Steel
Thread Direction
Right Hand
List Number
S2061306
Tap Thread Type
Metric Coarse
Standards
DIN 2174
Cutting Direction - Machining
Right Hand
Secondary Material Application
Nickel, Titanium
Secondary Material Application ISO Code
S
Thread Standard
Metric
Primary Material Application ISO Code
M, N, P
Primary Material Application
Aluminum, Brass, Bronze, Copper, Stainless Steel, Steel
Spiral Direction
Neutral
Coolant Fed
Non-Coolant Through
Extended Neck
No
Features
For Long-Chipping Materials, Only For Synchronous Machining (Rigid Tapping)
Material Grade - Machining
TICN
Series
Protodyn S Synchrospeed
Thread Pitch
0.70mm
Class of Fit
6HX
Thread Limit
6HX
Helix Angle
0 Degrees

Description

Thread Forming Tap, Thread Size M4x0.7, Metric, Overall Length 70 mm, High Speed Steel, TiCN, Right Hand, Thread Length 4.2 mm, 75 Percent Thread Drill Size 3.30 mm, Thread Limit 6HX, Class of Fit 6HX
