  11. Walter - Insert Walter Cut Form GX

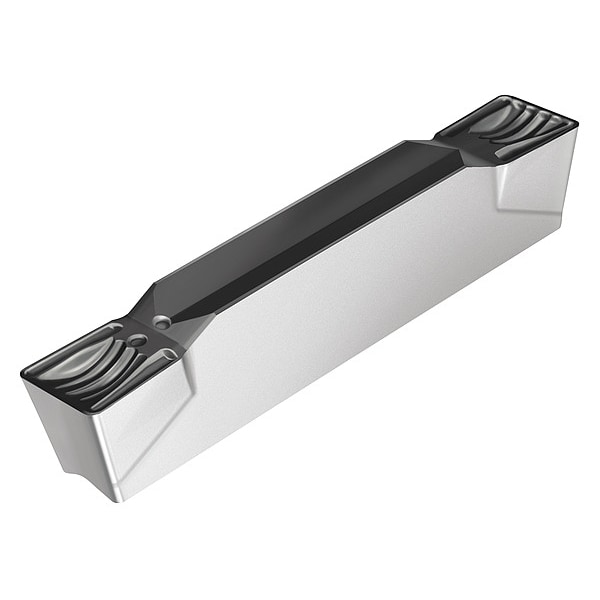

Walter Walter - Insert Walter Cut Form GX GX16-3E400N04-UF4 - main

Walter - Insert Walter Cut Form GX

  • Mfr # GX16-3E400N04-UF4

  • Zoro # G9381242

product price: $28.95
/ea
Sold in multiples of 10 for $289.50

Key Features

Style
GX16
Width
4.00mm
Chip-Breaker
Yes
Grade
WKP23S
Cutting Direction
Neutral
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GX16-3E400N04-UF4
Zoro #
G9381242
UPC #
-
Country of Origin
Germany

Dimensions

Width
4.00mm
Corner Radius
0.40mm
Insert Size
16
Overall Length
16.00mm
Max. Grooving Width
4.00mm
Depth of Cut
15.00mm
Seat Size
E
Reference Length
16.00mm

Details

Item
Parting and Grooving Insert
Style
GX16
Chip-Breaker
Yes
Grade
WKP23S
Cutting Direction
Neutral
Workpiece Compatibility
Cast Iron (K), Steel (P)
For Use With
GX Grooving Systems
Insert Material
Carbide
No. of Edges
2
Lead Angle
0 Degrees
Application
Grooving, Parting Off, Recessing, Axial, Internal Grooving
Mounting Style
Clamp
Super Alloy (S) Compatibility
No
Hardened (H) Compatibility
No
Non Ferrous (N) Compatibility
No
ISO Number
GX16-3E400N04-UF4 WKP23S
ANSI Number
GX16-3E400N04-UF4
Coating
Tiger-Tec CVD
Cast Iron (K) Compatibility
Yes
Stainless (M) Compatibility
No
Steel (P) Compatibility
Yes
Rake
32 Degrees
Insert Style
GX
Cutting Location
External
Chip-Breaker Code
UF4
Clearance Angle
6 Degrees
Primary Material Application ISO Code
K, P
Material - Machining
Carbide
Primary Material Application
Cast Iron, Steel
Number of Cutting Edges
2
Hole Type
No Hole
Measurement System
Metric
Manufacturer Grade
WKP23S
Coating Process
CVD
ANSI Code
GX16-3E400N04-UF4 WKP23S
Number of Cutting Sides
2
Cutting Application
Axial Grooving, Cut-Off, Facing, Longitudinal Turning, Radial Grooving

Description

Parting and Grooving Insert, Neutral, Max. Grooving Width 4.00mm, ANSI Code GX16-3E400N04-UF4 WKP23S, Chip-Breaker Code UF4, Clearance Angle 6 Degrees , Coating Process CVD
