  11. Walter - Insert Walter Cut Form GX

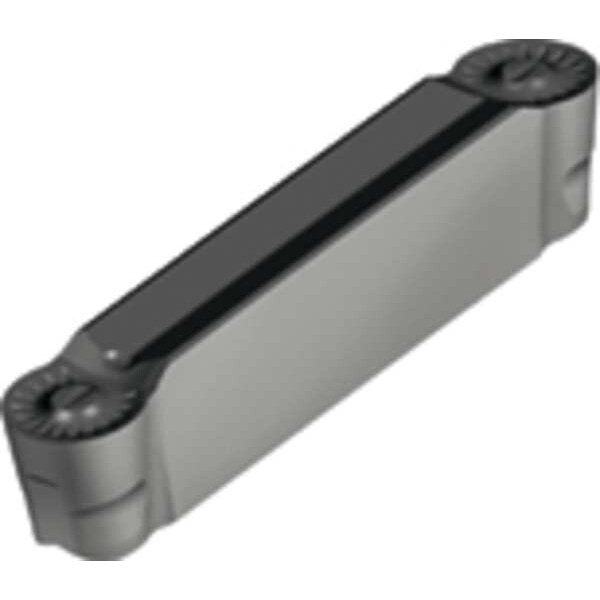

Walter Walter - Insert Walter Cut Form GX GX24-4E600N30-RF8 WSM23S - main

Walter - Insert Walter Cut Form GX

  • Mfr # GX24-4E600N30-RF8 WSM23S

  • Zoro # G9687666

product price: $49.19
/ea
Sold in multiples of 10 for $491.90

Key Features

Style
Pressed
Insert Seat Size
E
Width
6.00mm
Chip-Breaker
Yes
Grade
WSM23S
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GX24-4E600N30-RF8 WSM23S
Zoro #
G9687666
UPC #
-
Country of Origin
Germany

Dimensions

Insert Seat Size
E
Width
6.00mm
Corner Radius
3.00mm
Overall Length
24.00mm
Insert Size
24
Depth of Cut
22.00mm
Reference Length
24.00mm
Seat Size
E
Max. Grooving Width
6.00mm

Details

Item
Parting and Grooving Insert
Style
Pressed
Chip-Breaker
Yes
Grade
WSM23S
Cutting Direction
Neutral
Workpiece Compatibility
Stainless (M), Steel (P), Super Alloy (S)
Coating
PVD
Stainless (M) Compatibility
Yes
Application
Full Radius, Grooving, Facing, Low Feed
Insert Material
Carbide
Steel (P) Compatibility
Yes
For Use With
Walter Cut Monoblock Tools and Parting Blades
Super Alloy (S) Compatibility
Yes
ANSI Number
GX24-4E600N30-RF8 WSM23S
Hardened (H) Compatibility
No
Lead Angle
0 Degrees
Mounting Style
Slip In
No. of Edges
2
Non Ferrous (N) Compatibility
No
Cast Iron (K) Compatibility
No
Rake
Positive
ISO Number
GX24-4E600N30-RF8 WSM23S
Insert Style
GX
Material - Machining
Carbide
Number of Cutting Sides
2
Insert Holding Type
Slip In
Number of Cutting Edges
2
Primary Material Application
Nickel, Stainless Steel, Steel, Titanium
Manufacturer Grade
WSM23S
Cutting Application
Axial Grooving, Facing, Longitudinal Turning, Radial Grooving
Finish - Machining
TiAlN
Primary Material Application ISO Code
M, P, S
Coating Process
PVD
Measurement System
Metric
Chip-Breaker Code
RF8
Cutting Location
External
Hole Type
No Hole
ANSI Code
GX24-4E600N30-RF8 WSM23S

Description

Parting and Grooving Insert, Neutral, Max. Grooving Width 6.00mm, ANSI Code GX24-4E600N30-RF8 WSM23S, Chip-Breaker Code RF8, Coating Process PVD
