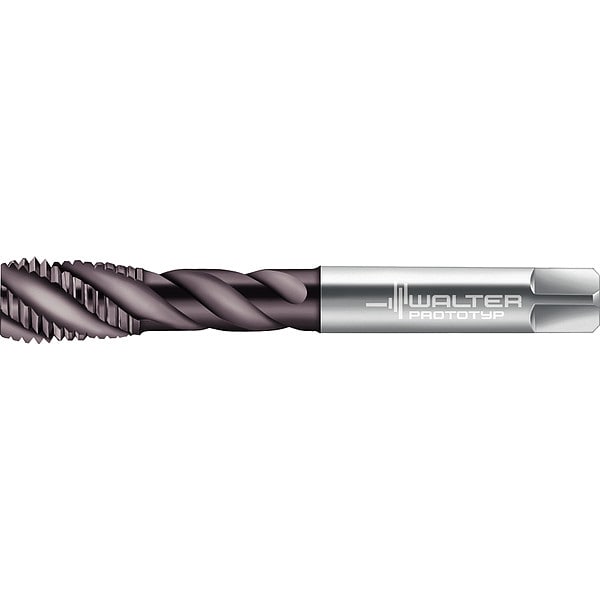

Walter Prototyp - Machine taps
- Mfr # 7569313
- Zoro # G8300926
product price:Â
$
121.99
/ea
Free Shipping & Returns
Key Features
Overall Length
100 mm
Tap Style
Spiral Flute
Shank Dia.
8.20 mm
Tap Chamfer
Modified Bottoming
Tap Material
High Speed Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 7569313
- Zoro #
- G8300926
- UPC #
- -
- Country of Origin
- Germany
- Item
- Spiral Flute Tap
- Tap Style
- Spiral Flute
- Tap Chamfer
- Modified Bottoming
- Tap Material
- High Speed Steel
- Number of Flutes
- 3
- Measurement System
- Metric
- Tap Shank Standard
- ANSI, DIN
- Shank Type - Machining
- Straight
- Class of Fit
- 2B
- Coolant Fed
- Non-Coolant Through
- Threads per Inch
- 14
- Features
- Good Wear Resistance, THL: Good Chip Control, Universal High-Performance Cut Tap
- Primary Material Application
- Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
- Series
- Paradur Eco Plus
- Thread Direction
- Right Hand
- Standards
- ANSI, DIN
- Primary Material Application ISO Code
- K, M, N, P
- Thread Standard
- UNC
- Helix Angle
- 45 Degrees
- Extended Neck
- Yes
- Thread Limit
- 2B
- Shank Type
- Straight
Dimensions
- Overall Length
- 100 mm
- Shank Dia.
- 8.20 mm
- Thread Length
- 15 mm
- Tap Length Standard
- ANSI, DIN
- 65% Thread Drill Size
- 9.57 mm
- Square Size
- 6.15 mm
- 75% Thread Drill Size
- 9.34 mm
- Tap Thread Size
- 11.11 mm
- Drill Bit Size
- 11.11 mm
- Thread Size
- 7/16"-14
- Min. Bore Dia.
- 9.34 mm
- 55% Thread Drill Size
- 9.80 mm
- Shank Length
- 27.30 mm
- Square Width
- 6.15 mm
- Shank Diameter
- 8.2 mm
- Square Length
- 6.15 mm
- Wire Rope Length
- 100 mm
- Length
- 100 mm
Description
Spiral Flute Tap, Thread Size 7/16 In.-14, UNC, Overall Length 100 mm, High Speed Steel, Thread Length 15 mm, 75 Percent Thread Drill Size 9.34 mm, Thread Limit 2B, Class of Fit 2B, Thread Direction Right Hand, Number of Flutes 3
