  11. Walter - Shank tool - Grooving

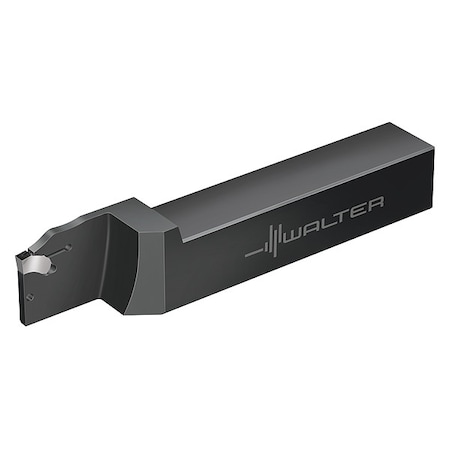

Walter Walter - Shank tool - Grooving G2012.16L-6T40SX-P - main

Walter - Shank tool - Grooving

  • Mfr # G2012.16L-6T40SX-P

  • Zoro # G9381075

product price: $360.99
/ea
Free Shipping & Returns

Key Features

For Use With
SX Series Inserts
Cutting Direction
Left Hand
ANSI Number
G2012.16L-6T40SX-P
Type
G2012
Torx Wrench
FS1494
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
G2012.16L-6T40SX-P
Zoro #
G9381075
UPC #
-
Country of Origin
Germany

Dimensions

Overall Length
5.9055 in
Shank Length
98.00mm
Max. Grooving Width
6.00mm
Head Length
52.00mm
Shank Height
1 in
Depth of Cut
40.00mm
Shank Width
1 in
Width Offset
0.236"
Height Offset
1"

Details

Item
Indexable Grooving and Parting Toolholder
For Use With
SX Series Inserts
Cutting Direction
Left Hand
ANSI Number
G2012.16L-6T40SX-P
Type
G2012
Torx Wrench
FS1494
Shank Shape
Square
Shank
1"
Includes
1/8 in Threaded Plug FS2258;Insert Mounting Wrench FS1494
Style
Shank
Insert Shape
SX Series
Clamp Screw
FS2258
Series
G2012
Center to Cutting Tip
22.75mm
Coolant Fed
Coolant Through
Insert Style
SX
Number of Coolant Holes
1
Toolholder Style
G2012-P
ISO Number
G2012.16L-6T40SX-P
Hardware Required
Yes
ANSI Code
G2012.16L-6T40SX-P
Cutting Application
Grooving
Hardware Included
Yes
Cutting Location
External
Compatible Hardware
1/8 in Threaded Plug FS2258; Insert Mounting Wrench FS1494
Product Family
NOVEX-CUT External Positive
Insert Holding Type
Self Clamping
Mounting Style
Pressure Clamp

Description

Indexable Grooving and Parting Toolholder, NOVEX-CUT External Positive, Insert Style SX, Left Hand, Grooving, Shank Width 1 in, ANSI Code G2012.16L-6T40SX-P, Center to Cutting Tip 22.75mm, Compatible Hardware 1/8 in Threaded Plug FS2258; Insert Mounting Wrench FS1494, Coolant Fed Coolant Through
