  11. Walter Titex - Solid carbide coolant through drill Micro

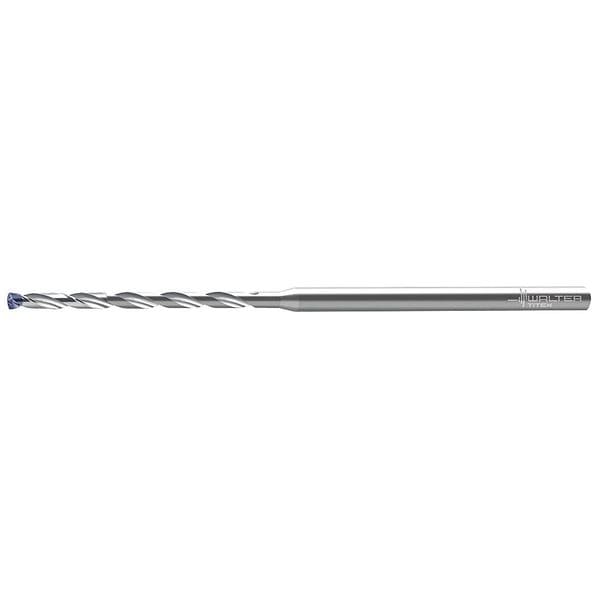

Walter Walter Titex - Solid carbide coolant through drill Micro A6589AMP-2.5 - main

Walter Titex - Solid carbide coolant through drill Micro

  • Mfr # A6589AMP-2.5

  • Zoro # G6067546

product price: $189.99
/ea
Free Shipping & Returns

Key Features

Shank Dia.
3 mm
Flute Length
39 mm
Overall Length
77 mm
Number of Flutes
2
Drill Bit Point Angle
140 Degrees
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A6589AMP-2.5
Zoro #
G6067546
UPC #
-
Country of Origin
France

Dimensions

Drill Bit Size
2.5 mm
Shank Dia.
3 mm
Flute Length
39 mm
Overall Length
77 mm
Depth:Dia. Ratio
12xD
Drill Bit Dimension Type
Metric
Depth x Dia. Ratio
12xD
Shank Length
34 mm
Drilling Depth
35.00mm
Maximum Drilling Depth
39.00 mm
Drill Length Class
Micro Length
Drill Diameter Tolerance
H7

Details

Item
Micro Drill Bit
Number of Flutes
2
Drill Bit Point Angle
140 Degrees
Cutting Direction
Right Hand
Flute Type
Spiral
Drill Bit Material
Solid Carbide
Drill Bit Finish
AlTiN
Decimal Equivalent
0.0984
List Number
A6589
Coolant Through
Yes
Drill Bit Grouping
Drill Bit
Number of Pieces
1
Point Type
Self-centering
Grade
K30F
Application
Steel, Stainless Steel, Cast Iron, NF Metals, High Temperature Alloys and Titanium Alloys, Hard Materials
Standards
DIN 6537
Shank Type - Machining
Straight
Material - Machining
Carbide
Primary Material Application ISO Code
K, M, N, P, S
Finish - Machining
AlTiN
Measurement System
Metric
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Nickel, Stainless Steel, Steel, Titanium
Coolant Fed
Coolant Through
Drill Bit Point Type
Self-Centering Point
Circuit Board Drill
Circuit Board Drill Not Included
Aircraft Drill
No
Secondary Material Application ISO Code
H, O
Secondary Material Application
Composite, Hardened Steel
Number of Coolant Holes
2
Series
X.treme DM12
Material Grade - Machining
K30F

Description

Micro Drill Bit, Drill Bit Size 2.5 mm, Drill Bit Point Angle 140 Degrees , Self-Centering Point, Carbide, AlTiN, H7, Spiral, K30F
