  11. Walter Titex - Solid carbide twist drill, Drill Bit, DB133-08-01.200A1-WJ30ER
Walter Walter Titex - Solid carbide twist drill, Drill Bit, DB133-08-01.200A1-WJ30ER DB133-08-01.200A1-WJ30ER - main

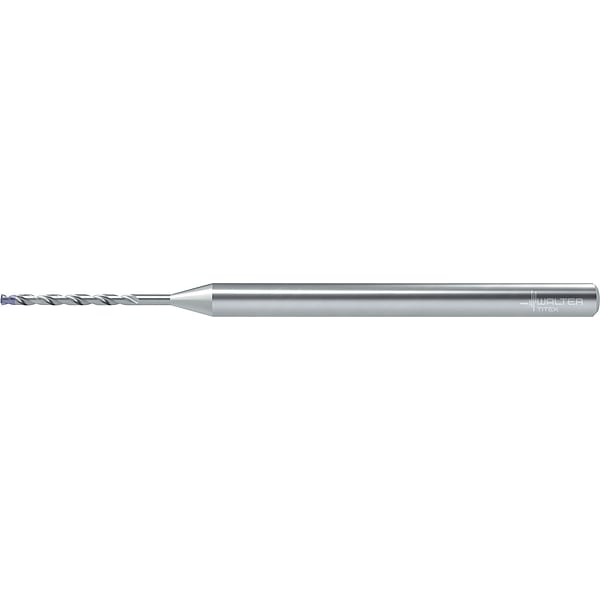

Walter Titex - Solid carbide twist drill, Drill Bit, DB133-08-01.200A1-WJ30ER

  • Mfr # DB133-08-01.200A1-WJ30ER

  • Zoro # G200422395

product price: $182.99
/ea
Free Shipping & Returns

Key Features

Cutting Direction
Right Hand
Shank Type
Straight
Flute Type
Spiral
Flute Length
14.00 mm
Coolant Through
Coolant Through
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DB133-08-01.200A1-WJ30ER
Zoro #
G200422395
UPC #
04031132426556
Country of Origin
France

Dimensions

Drill Bit Size
1.20 mm
Flute Length
14.00 mm
Drill Diameter Tolerance
M7
Maximum Drilling Depth
12.00 mm
Shank Dia.
3 mm
Shank Length
34.00 mm
Drill Length Class
Micro Length
Depth:Dia. Ratio
8xD
Overall Length
54.00 mm

Details

Cutting Direction
Right Hand
Shank Type
Straight
Flute Type
Spiral
Coolant Through
Coolant Through
Measurement System
Metric
Number of Coolant Holes
2
Decimal Equivalent
0.0472
Primary Material Application ISO Code
K, M, N, P
Secondary Material Application
Graphite, Hardened Steel
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
Drill Bit Material
Carbide
List Number
DB133
Drill Bit Point Angle
140 Degrees
Item
Micro Drill Bit
Standards
TP-NORM 64M
Secondary Material Application ISO Code
H, O, S
Grade
WJ30ER
Finish
AlCrN
Drill Bit Point Type
Conventional Point

Description

Micro Drill Bit, Drill Bit Size 1.2 mm, Drill Bit Point Angle 140 Degrees , Conventional Point, Carbide, AlCrN, M7, Spiral, WJ30ER

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
