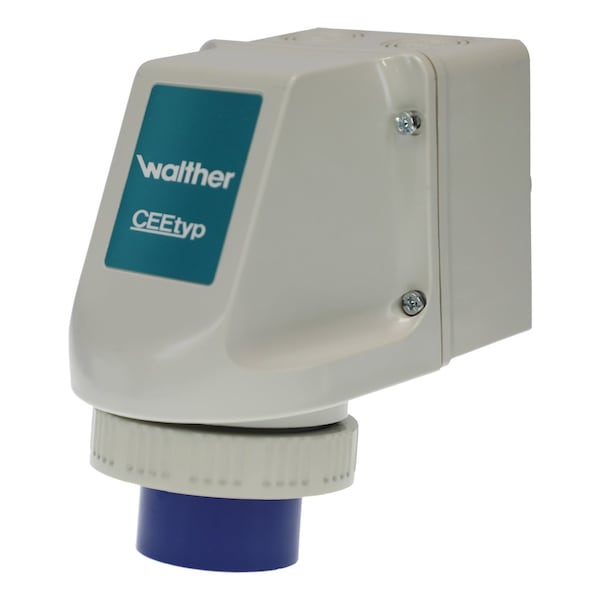

Pin and Sleeve Inlet, 20A, 230/3ø250, 3 Phase, 3 Pole, NEMA Not Rated
Mfr # 618409
Zoro # G116275719
product price: $216.99
/ea
Free Shipping & Returns
Key Features
Number of Wires
4
NEMA Enclosure Rating
Not Rated
Current Rating
20A
Wire Connection Type
Screw Terminals
Standards
IEC 60309, UL Listed, CSA Certified
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
618409
Zoro #
G116275719
UPC #
-
Country of Origin
Germany
Dimensions
Height
6.06 in
Length
5.51 in
Width
3.19 in
Details
Number of Wires
4
NEMA Enclosure Rating
Not Rated
Current Rating
20A
Item
Pin and Sleeve Inlet
Wire Connection Type
Screw Terminals
Standards
IEC 60309, UL Listed, CSA Certified
Housing Color
Blue
Number of Poles
3
Voltage Rating
230/3ø250
IP Rating
IP67
Phase
3
Cap Type
No cap or cover
Material
Thermoplastic
Clock Position
9
Cable Gland
Surface Mount
Application
Industrial Electrical
Description
Walther Electric 618409 Pin and Sleeve Inlet 16/20A 4 Wire 230/3o250 VAC 9Hr IP67 Watertight Blue is interchangeable with other IEC 60309 industrial grade 416B9W/420B9W electrical inlets.
- UL Listed
- CSA Certified
- Surface Mount
- SHROUDED PINS: Nickel-plated solid-brass pins offer corrosion protection and excellent conductivity
- FIRST MAKE/LAST BREAK (FMLB): Preventing making or breaking the circuit under load
- COLOR-CODED: All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC: Heavy-duty insulated housings are resistant to corrosion and abrasions
- SURFACE MOUNT: Includes 4 pre-drilled holes for quick and easy mounting
