Pin and Sleeve Inlet, 30A, 3ø 250 or 230, 3 Phase, 3 Pole, NEMA Not Rated
Mfr # 635409
Zoro # G416275709
product price: $116.99
/ea
Free Shipping & Returns
Key Features
Wire Connection Type
Screw Terminals
Voltage Rating
3ø 250 or 230
Number of Wires
4
Current Rating
30A
Standards
IEC 60309, UL Listed, CSA Certified
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
635409
Zoro #
G416275709
UPC #
-
Country of Origin
Germany
Dimensions
Width
3.15 in
Height
3.15 in
Length
3.07 in
Details
Wire Connection Type
Screw Terminals
Voltage Rating
3ø 250 or 230
Number of Wires
4
Current Rating
30A
Standards
IEC 60309, UL Listed, CSA Certified
Phase
3
NEMA Enclosure Rating
Not Rated
Number of Poles
3
Item
Pin and Sleeve Inlet
IP Rating
IP44
Cap Type
No cap or cover
Housing Color
Blue
Clock Position
9
Application
Industrial Electrical
Material
Thermoplastic
Cable Gland
Straight
Description

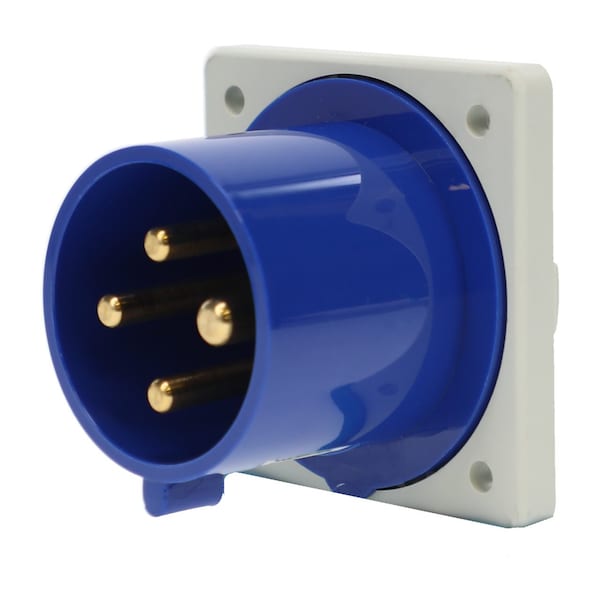

Walther Electric 635409 Pin and Sleeve Inlet 30A/32A 4 Wire 230/250 VAC 9Hr IP44 Splashproof Blue is interchangeable with other IEC 60309 industrial grade 430B9 electrical inlets.
- UL Listed
- CSA Certified
- Straight
- SHROUDED PINS: Nickel-plated solid-brass pins offer corrosion protection and excellent conductivity
- FIRST MAKE/LAST BREAK (FMLB): Preventing making or breaking the circuit under load
- COLOR-CODED: All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC: Heavy-duty insulated housings are resistant to corrosion and abrasions
- SURFACE MOUNT: Includes 4 pre-drilled holes for quick and easy mounting
