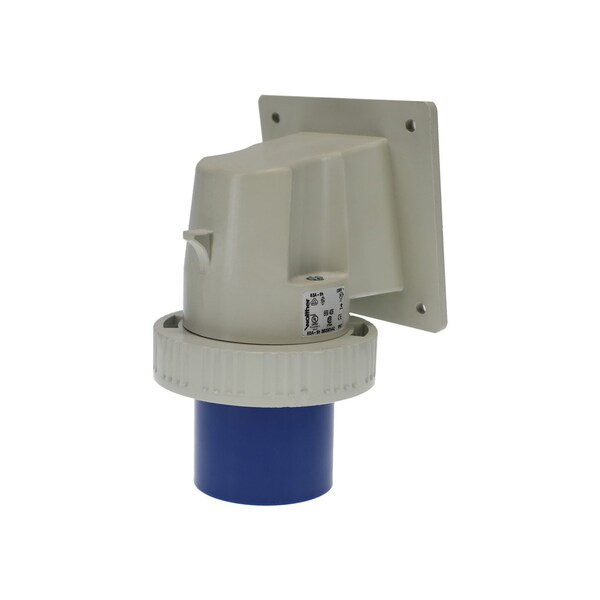

Pin and Sleeve Inlet, 60A, 3ø 250 or 230, 3 Phase, 3 Pole, NEMA Not Rated
Mfr # 669409
Zoro # G916275711
product price: $531.99
/ea
Free Shipping & Returns
Key Features
Current Rating
60A
Voltage Rating
3ø 250 or 230
Housing Color
Blue
Cap Type
No cap or cover
Standards
IEC 60309, UL Listed, CSA Certified
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
669409
Zoro #
G916275711
UPC #
-
Country of Origin
Germany
Dimensions
Length
5.08 in
Width
4.33 in
Height
7.24 in
Details
Item
Pin and Sleeve Inlet
Current Rating
60A
Voltage Rating
3ø 250 or 230
Housing Color
Blue
Cap Type
No cap or cover
Standards
IEC 60309, UL Listed, CSA Certified
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Phase
3
Number of Poles
3
Wire Connection Type
Screw Terminals
Number of Wires
4
Material
Thermoplastic
Clock Position
9
Application
Industrial Electrical
Cable Gland
Angled 80°
Description
Walther Electric 669409 Pin and Sleeve Inlet 60/63A 4 Wire 3o 250 or 230 VAC 9Hr IP67 Watertight Blue is interchangeable with other IEC 60309 industrial grade 460BA9W electrical inlets.
- UL Listed
- CSA Certified
- Angled 80°
- SHROUDED PINS: Nickel-plated solid-brass pins offer corrosion protection and excellent conductivity
- FIRST MAKE/LAST BREAK (FMLB): Preventing making or breaking the circuit under load
- COLOR-CODED: All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC: Heavy-duty insulated housings are resistant to corrosion and abrasions
- SURFACE MOUNT: Includes 4 pre-drilled holes for quick and easy mounting
