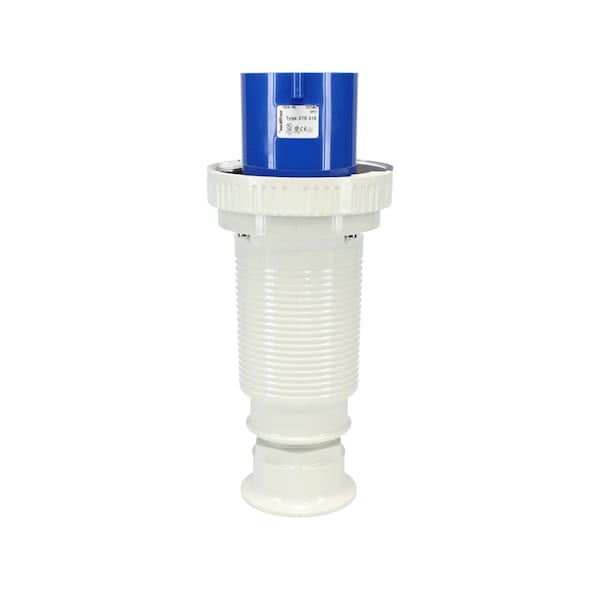

Pin and Sleeve Plug, 100A, 3ø 250, 3 Phase, 2 Pole, Blue, Screw Terminals Wire Connection Type
Mfr # 279318
Zoro # G516275722
product price: $549.99
/ea
Free Shipping & Returns
Key Features
Phase
3
Number of Poles
2
Number of Wires
3
IP Rating
IP67
Wire Connection Type
Screw Terminals
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
279318
Zoro #
G516275722
UPC #
-
Country of Origin
Germany
Dimensions
Height
12.4 in
Length
5.12 in
Width
5.12 in
Details
Item
Pin and Sleeve Plug
Current Rating
100A
Voltage Rating
3ø 250
Phase
3
Number of Poles
2
Number of Wires
3
IP Rating
IP67
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
No cap or cover
Standards
IEC 60309, UL Listed, CSA Certified
Material
Thermoplastic
NEMA Enclosure Rating
Not Rated
Application
Industrial Electrical
Cable Gland
Trumpet/Bell Gland
Clock Position
6
Description
Walther Electric 279318 Pin and Sleeve Plug 100A 3 Wire 3o 250 VAC 6Hr IP67 Watertight Blue is interchangeable with other IEC 60309 industrial grade 3100P6W electrical plugs.
- UL Listed
- CSA Certified
- Trumpet/Bell Gland
- RETAINING DEVICE : Prevents unintentional withdrawal when male and female devices are connected
- SHROUDED PINS: Nickel-plated solid-brass pins offer corrosion protection and excellent conductivity
- FIRST MAKE/LAST BREAK (FMLB): Preventing making or breaking the circuit under load
- COLOR-CODED: All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC: Heavy-duty insulated housings are resistant to corrosion and abrasions
