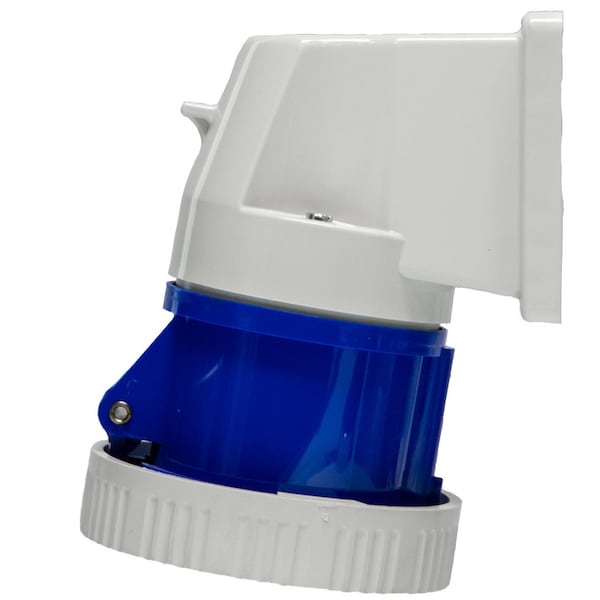

Pin and Sleeve Receptacle, 30A, 3ø 250 or 230, 3 Phase, 3 Pole, Screw Terminals Wire Connection Type
Mfr # 538409
Zoro # G416275754
product price: $280.99
/ea
Free Shipping & Returns
Key Features
Voltage Rating
3ø 250 or 230
Phase
3
Number of Poles
3
Number of Wires
4
IP Rating
IP67
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
538409
Zoro #
G416275754
UPC #
-
Country of Origin
Germany
Dimensions
Length
4.76 in
Width
3.78 in
Height
5.71 in
Details
Item
Pin and Sleeve Receptacle
Current Rating
30A
Voltage Rating
3ø 250 or 230
Phase
3
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Spring-Loaded Cap
Standards
IEC 60309, UL Listed, CSA Certified
Material
Thermoplastic
Application
Industrial Electrical
Cable Gland
Angled 80°
Clock Position
9
Description
Walther Electric 538409 Pin and Sleeve Receptacle 30/32A 4 Wire 250 or 230 VAC 9Hr IP67 Watertight Blue is interchangeable with other IEC 60309 industrial grade 430R9W electrical receptacle.
- UL Listed
- CSA Certified
- Angled 80°
- SPRING LOADED COVER: Snaps into place when disconnected. Protects against environment
- RECESSED CONTACTS: Protects against accidental encounter with live contacts
- COLOR-CODED: All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC: Heavy-duty insulated housings are resistant to corrosion and abrasions
- SURFACE MOUNT: Includes 4 pre-drilled holes for quick and easy mounting
