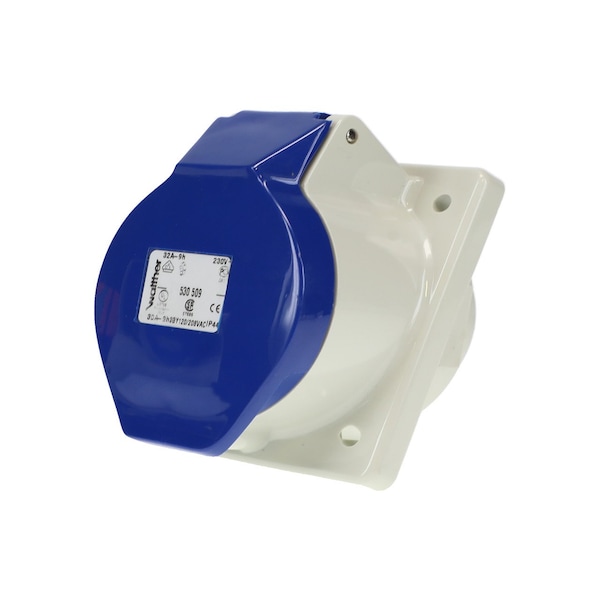

Pin and Sleeve Receptacle, 30A, 3øY 120/208 or 230, 3 Phase, 3 Pole, Blue, NEMA Not Rated
Mfr # 530509
Zoro # G116275726
product price: $194.99
/ea
Free Shipping & Returns
Key Features
Current Rating
30A
Voltage Rating
3øY 120/208 or 230
Phase
3
Number of Poles
3
Number of Wires
5
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
530509
Zoro #
G116275726
UPC #
-
Country of Origin
Germany
Dimensions
Width
3.15 in
Length
4.06 in
Height
3.74 in
Details
Item
Pin and Sleeve Receptacle
Current Rating
30A
Voltage Rating
3øY 120/208 or 230
Phase
3
Number of Poles
3
Number of Wires
5
IP Rating
IP44
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Spring-Loaded Cap
Standards
IEC 60309, UL Listed, CSA Certified
Material
Thermoplastic
Application
Industrial Electrical
Clock Position
9
Cable Gland
Angled 15°
Description
Walther Electric 530509 Pin and Sleeve Receptacle 30/32A 5 Wire 3oY120/208/230 VAC 9Hr IP44 Splashproof Blue is interchangeable with other IEC 60309 industrial grade 530R9 and/or 532R9 electrical receptacles
- UL Listed
- CSA Certified
- Angled 15°
- SPRING LOADED COVER: Snaps into place when disconnected. Protects against environment
- RECESSED CONTACTS: Protects against accidental encounter with live contacts
- COLOR-CODED: All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC: Heavy-duty insulated housings are resistant to corrosion and abrasions
- SURFACE MOUNT: Includes 4 pre-drilled holes for quick and easy mounting
