ATV/UTV Electric Winch, Rotating End Cap

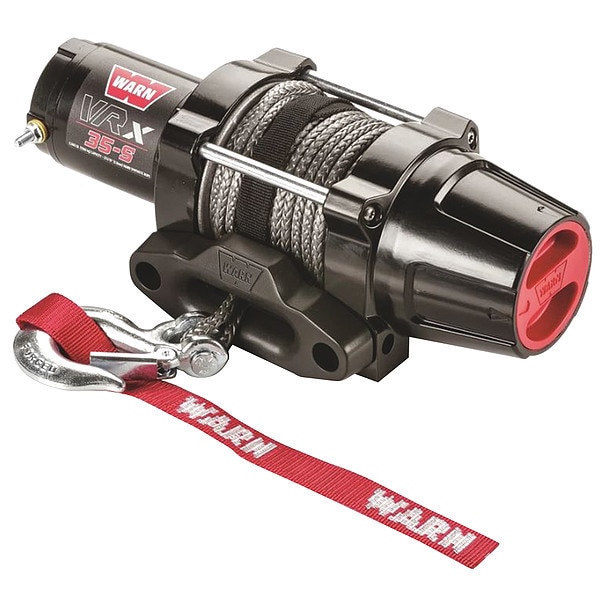

Warn ATV/UTV Electric Winch, Rotating End Cap 101030
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$415.99
  • Promotion Restriction: Not eligible for promotion
  • Electric Winch Item: ATV/UTV Electric Winch
  • Winch Type: Pulling
See full product details
This item ships free.
Total: $415.99

Warn #101030 Specifications

  • Promotion Restriction: Not eligible for promotion
  • Electric Winch Item: ATV/UTV Electric Winch
  • Winch Type: Pulling
  • Voltage Rating: 12V DC
  • 1st Layer Load Capacity: 3,500 lb
  • Motor HP: 1.2 hp
  • 1st Layer Line Speed: 13.4 fpm
  • Rope Material: Synthetic
  • Full Load Amps: 192 A
  • Winch Gear Type: 3-Stage Planetary
  • Manufacturers Warranty Length: Limited Lifetime Electric 3 yr
  • No Load Line Speed: 15.8 fpm
  • Item: ATV/UTV Electric Winch
  • Overall Height: 4 47/64 in
  • Series: VRX 35-S
  • Winch Gear Ratio: 153:1
  • Overall Width: 13 23/64 in
  • Included Rope Length: 50 ft
  • Overall Length: 13 25/64 in
  • Clutch Release: Yes
  • Control Pendant Cord Length: 10 ft
  • Drum Capacity for 1/4 In. Cable: 27 ft
  • Mechanical Brake: Yes
  • Included Rope Dia.: 3/16 in
  • Free Spooling Clutch Type: Rotating End Cap
  • Pulley Block: No
  • Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

ATV/UTV Electric Winch, Voltage Rating 12V DC, Motor HP 1.2 hp, Winch Gear Type 3-Stage Planetary, 1st Layer Load Capacity 3,500 lb, Full Load Amps 192 A, Clutch Release Yes, Free Spooling Clutch Type Rotating End Cap, Pulley Block No, Included Rope Dia. 3/16 in, Included Rope Length 50 ft, Mechanical Brake Yes, Overall Length 13 25/64 in, Overall Width 13 23/64 in, Overall Height 4 47/64 in, Series VRX 35-S, No Load Line Speed 15.8 fpm, Winch Gear Ratio 153:1, 1st Layer Line Speed 13.4 fpm
