  6. Winch VR10S Vehicle Mounted; Vehicle Recovery Winch; 12 Volt Electric; 10000 Pound Line Pull

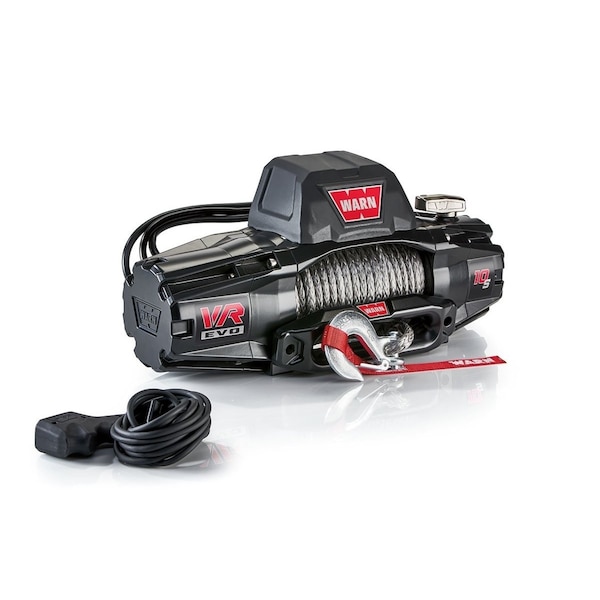

Warn Winch VR10S Vehicle Mounted; Vehicle Recovery Winch; 12 Volt Electric; 10000 Pound Line Pull 103253 - main

Winch VR10S Vehicle Mounted; Vehicle Recovery Winch; 12 Volt Electric; 10000 Pound Line Pull

  • Mfr # 103253

  • Zoro # G309022397

product price:  $996.99
/ea
Free Shipping & Returns

Key Features

Electric Winch Item
Electric Winch
Winch Type
Lifting
Voltage Rating
12V DC
1st Layer Load Capacity
10,000 lb
Motor HP
6.5 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
103253
Zoro #
G309022397
UPC #
12748069089
Country of Origin
China

Dimensions

Control Pendant Cord Length
11 ft 1/2 in
Manufacturers Warranty Length
7 yr Electric, Limited Lifetime Mechanical
Included Rope Dia.
3/8 in
Overall Width
6 19/64 in
Overall Length
21 1/32 in
Overall Height
10 3/32 in
Included Rope Length
90 ft
Controller Cord Length
11 1/2 ft
Included Line Diameter
2/5 in
Line Length
90 ft
Recommended Line Diameter
2/5 in

Details

Electric Winch Item
Electric Winch
Winch Type
Lifting
Voltage Rating
12V DC
1st Layer Load Capacity
10,000 lb
Motor HP
6.5 hp
1st Layer Line Speed
5.2 fpm
Rope Material
Synthetic
Full Load Amps
356 A
Winch Gear Type
3-Stage Planetary
Item
Electric Winch
Winch Gear Ratio
218:01:00.000
Free Spooling Clutch Type
Lever
Color
Black
No Load Line Speed
27 fpm
Clutch Release
Yes
Gear Ratio
218:01:00.000
Gear Type
Planetary
Pulley Block
No
Mechanical Brake
Yes
Series
VR EVO 10-S
Clutch Type
Free Spooling Clutch
Body Material
Steel
Compatible Line
Synthetic Rope
Control Type
Manual Lever
Controls
Handheld
Included Components
Clutch Release, Brake, Hardware
Includes Brake
Brake Included
Max Drum Capacity per Line Dia
90 ft per 3/8 in
Maximum Current
298 A
Maximum Pulling Capacity
10,000 lb
Motor Horsepower
6 1/2 hp
Number of Gear Settings
3
Operating Voltage
12V DC
Operation
Pulling
Product Type
Electric Winch
Resistance Properties
Waterproof
Voltage
12V DC

Description

Vehicle Mounted; Vehicle Recovery Winch; 12 Volt Electric; 10000 Pound Line Pull Capacity; 90 Foot Synthetic Rope; Hawse Fairlead; Wired Remote; Planetary Gear Drive
