  9. Level Control High/Low/ Low Heat Alarm

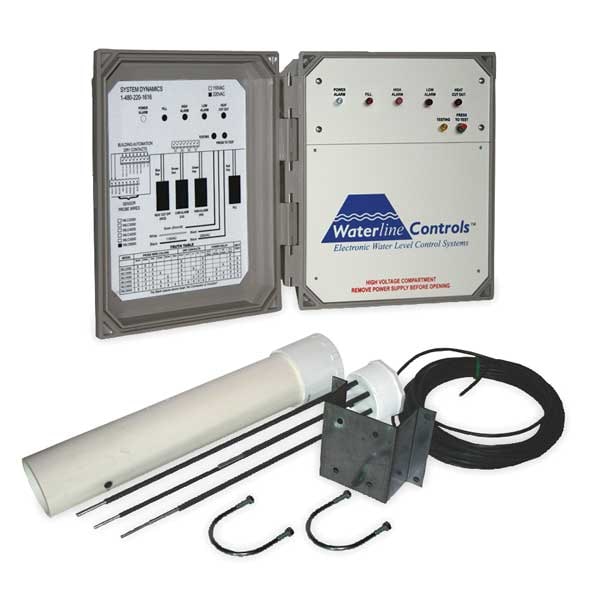

Waterline Controls Level Control High/Low/ Low Heat Alarm WLC6000-120VAC - main

Level Control High/Low/ Low Heat Alarm

  • Mfr # WLC6000-120VAC

  • Zoro # G1525142

product price: $1,406.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
110V AC 50/60 Hz
Relays
30 Amps at 250V AC
Switch Type
(4)SPST
Sensor Dia. (In.)
3 in
Includes
Installation Instructions, Mounting Brackets and U Bolts, Sensor Wire, Stainless Steel Sensor Assembly, Waterline Controller in NEMA 4x Box
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WLC6000-120VAC
Zoro #
G1525142
UPC #
-
Country of Origin
United States

Dimensions

Sensor Dia. (In.)
3 in
Sensor Cord Length (Ft.)
50 ft
Enclosure Width (In.)
10 1/2 in
Max. Circuit Length (Ft.)
50 ft
Sensor Length (In.)
20 in
Enclosure Height (In.)
8 3/4 in
Enclosure Depth (In.)
6 in
High Alarm Probe Length
10 3/8 in
Housing Width
10 1/2 in
Housing Height
9 1/2 in
Reference Probe Length
17 in
Process Connection Size
1 in
Sensor Head Diameter
3 in
Fill Stop Probe Length
14 in
Low-Low Alarm Probe Length
17 in
Housing Depth
5 in
Low Alarm Probe Length
16 3/8 in
Fill Start Probe Length
15 1/2 in

Details

Input Voltage
110V AC 50/60 Hz
Relays
30 Amps at 250V AC
Switch Type
(4)SPST
Includes
Installation Instructions, Mounting Brackets and U Bolts, Sensor Wire, Stainless Steel Sensor Assembly, Waterline Controller in NEMA 4x Box
Item
Water Level Control
Application
Cooling Towers, Water Water Tanks, Storm Water tanks, Sewage Water Systems, Well Water Holding tanks, Irrigation Lakes, Boilers, Water Storage Tanks
Valve
Can Be Used With 1 in Npt And 110Vac Or Eqivalent Made By Asco Model 8221
Sensors Included
Fill Height With High and Low Level Alarm and Low Heat Cut Off
Control Type
Electronic With Microprocessor For Site Automation or Integration
Special Features
110Vac Solenoid Required ( Purchase Seperately) Rated For Outdoor Installation, Building Automation Dry Contracts, Can Be Integrated Into Building Automation System, Compensates For Wave Action, Easy To Read Led Display, Low Voltage Probe, Modular Construction, No High Voltage In The Wet Area Of The System, No Moving Parts, One-Step Internal Testing System For The Electronics, Seperate Relay For Each Set Point, Stainless Steel Probes
Type
Universal
Operating Range
1 1/2, 3, 6, and 10 in
Agency Compliance
ETL Listed
Enclosure Type
NEMA 4X
Sensor Placement
On The Environment Wall or In A Static Pipe
Special Information
The WLC Series is perfect in any application where water level management is important such as cooling tower basins and water holding tanks for cooling towers. It uses a microprocessor that monitors all probes for correct operation and then provides the corresponding outputs to drive the power relays, the Building Automation System and a visual indication of the operational status. The Modular construction and a self-test feature insure user-friendly operation. By using a very low voltage and current, WLC Series sensors never foul or degrade
Enclosure Color
Gray
Number of Switches
4
Voltage
120V AC
Standards
C-ETL-US
Lockable
Lockable
Feed Choices
Fixed Feed
Sensor Material
PVC
Fill Start Probe Color
White
NEMA Rating
4X
Housing Material
Polycarbonate
Operating Temperature - Maximum
200 Degrees F
Process Connection Type
NPT
Number of Indicator Lights
5
Low-Low Alarm Probe Color
Blue
Number of Dry Contacts
5
Dry Contact Relay Contact Form
SPST
Outlet Pressure - Maximum
30 psi
Dry Contact Current Rating
0.5 A
Reference Probe Color
Black
Power Relay Contact Form
DPDT
Dry Contact Switch Action
Normally Open
Probes Included
Fill Start, Fill Stop, High Alarm, Low Alarm, Low-Low Alarm, Reference
Mounting Style
Mounting Assembly
Low Alarm Probe Color
Brown
High Alarm Probe Color
Green
Functions
Fill, High Alarm, Low Alarm
Number of Relays
4
Power Relay Current Rating
30 A
Fill Stop Probe Color
Red
Included Flood Protection Lockout
Flood Protection Lockout Not Included
Power Relay Switch Action
Normally Closed, Normally Open

Description

Water Level Control, Application Cooling Towers, Water Water Tanks, Storm Water tanks, Sewage Water Systems, Well Water Holding tanks, Irrigation Lakes, Boilers, Water Storage Tanks, Dry Contact Current Rating 0.5 A, Dry Contact Relay Contact Form SPST, Dry Contact Switch Action Normally Open, Electrical Lead Length Not Applicable, Feed Choices Fixed Feed, Fill Start Probe Color White, Fill Start Probe Length 15 1/2 in, Fill Stop Probe Color Red, Fill Stop Probe Length 14 in
