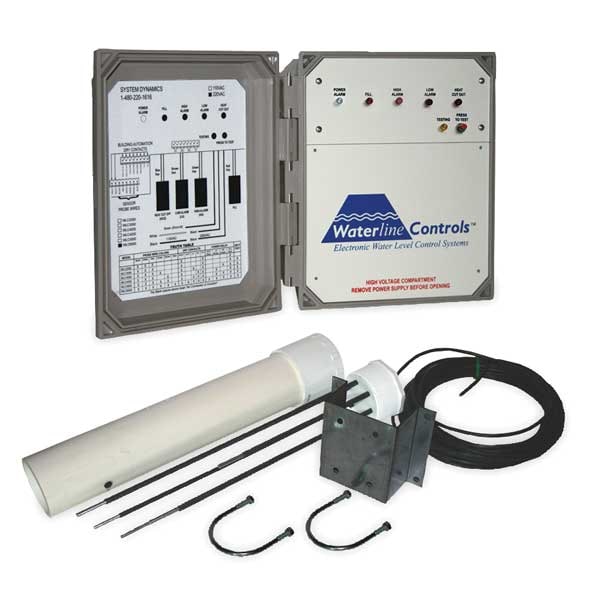

Waterline Controls Water Level Control Fill Only WLC3000-220VAC - main

Water Level Control Fill Only

  • Mfr # WLC3000-220VAC

  • Zoro # G1654432

product price: $1,250.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
220V AC 50/60Hz
Relays
30 Amps at 250V AC
Switch Type
SPST
Sensor Dia. (In.)
3 in
Includes
Installation Instructions, Mounting Brackets and U Bolts, Sensor Wire, Stainless Steel Sensor Assembly, Waterline Controller in NEMA 4x Box
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WLC3000-220VAC
Zoro #
G1654432
UPC #
-
Country of Origin
United States

Dimensions

Sensor Dia. (In.)
3 in
Sensor Length (In.)
20 in
Enclosure Width (In.)
10 1/2 in
Sensor Cord Length (Ft.)
50 ft
Enclosure Height (In.)
8 3/4 in
Max. Circuit Length (Ft.)
50 ft
Enclosure Depth (In.)
6 in
Reference Probe Length
17 in
Sensor Head Diameter
3 in
Housing Height
9 1/2 in
Housing Depth
5 in
Fill Start Probe Length
15 1/2 in
Process Connection Size
1 in
Fill Stop Probe Length
14 in
Housing Width
10 1/2 in

Details

Input Voltage
220V AC 50/60Hz
Relays
30 Amps at 250V AC
Switch Type
SPST
Includes
Installation Instructions, Mounting Brackets and U Bolts, Sensor Wire, Stainless Steel Sensor Assembly, Waterline Controller in NEMA 4x Box
Item
Water Level Control
Special Features
110Vac Solenoid Required ( Purchase Seperately) Rated For Outdoor Installation, Building Automation Dry Contracts, Can Be Integrated Into Building Automation System, Compensates For Wave Action, Easy To Read Led Display, Low Voltage Probe, Modular Construction, No High Voltage In The Wet Area Of The System, No Moving Parts, One-Step Internal Testing System For The Electronics, Seperate Relay For Each Set Point, Stainless Steel Probes
Number of Switches
1
Operating Range
1 1/2 in
Agency Compliance
ETL Listed
Type
Universal
Control Type
Electronic With Microprocessor For Site Automation or Integration
Sensors Included
Fill Height Only
Enclosure Color
Gray
Sensor Placement
On The Environment Wall or In A Static Pipe
Application
Cooling Towers, Water Water Tanks, Storm Water tanks, Sewage Water Systems, Well Water Holding tanks, Irrigation Lakes, Boilers, Water Storage Tanks
Enclosure Type
NEMA 4X
Valve
Can Be Used With 1 in Npt And 110Vac Or Eqivalent Made By Asco Model 8221
Special Information
The WLC Series is perfect in any application where water level management is important such as cooling tower basins and water holding tanks for cooling towers. It uses a microprocessor that monitors all probes for correct operation and then provides the corresponding outputs to drive the power relays, the Building Automation System and a visual indication of the operational status. The Modular construction and a self-test feature insure user-friendly operation. By using a very low voltage and current, WLC Series sensors never foul or degrade
Voltage
220V AC
Standards
C-ETL-US
Mounting Style
Mounting Assembly
Housing Material
Polycarbonate
Dry Contact Current Rating
0.5 A
Number of Indicator Lights
2
Reference Probe Color
Black
Included Flood Protection Lockout
Flood Protection Lockout Not Included
Lockable
Lockable
Fill Stop Probe Color
Red
Number of Relays
1
Process Connection Type
NPT
Probes Included
Fill Start, Fill Stop, Reference
Power Relay Switch Action
Normally Closed, Normally Open
Power Relay Current Rating
30 A
Sensor Material
PVC
Feed Choices
Fixed Feed
Functions
Fill
Dry Contact Switch Action
Normally Open
Outlet Pressure - Maximum
30 psi
Dry Contact Relay Contact Form
SPST
Number of Dry Contacts
2
Operating Temperature - Maximum
200 Degrees F
NEMA Rating
4X
Power Relay Contact Form
DPDT
Fill Start Probe Color
White

Description

Water Level Control, Application Cooling Towers, Water Water Tanks, Storm Water tanks, Sewage Water Systems, Well Water Holding tanks, Irrigation Lakes, Boilers, Water Storage Tanks, Dry Contact Current Rating 0.5 A, Dry Contact Relay Contact Form SPST, Dry Contact Switch Action Normally Open, Electrical Lead Length Not Applicable, Feed Choices Fixed Feed, Fill Start Probe Color White, Fill Start Probe Length 15 1/2 in, Fill Stop Probe Color Red, Fill Stop Probe Length 14 in, Functions Fill
