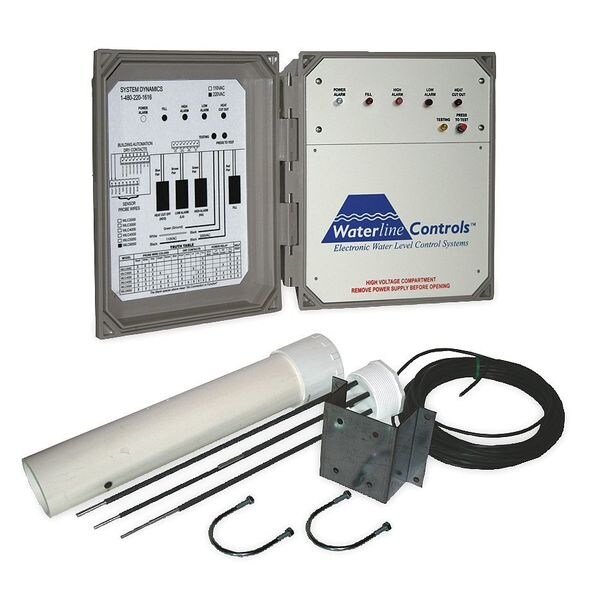

Waterline Controls Water Level Control Fill w/ High Alarm WLC4000-220VAC - main

Water Level Control Fill w/ High Alarm

  • Mfr # WLC4000-220VAC

  • Zoro # G2780382

product price: $1,282.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
220V AC 50/60Hz
Relays
30 Amps at 250V AC
Switch Type
(2)SPST
Sensor Dia. (In.)
3 in
Includes
Installation Instructions, Mounting Brackets and U Bolts, Sensor Wire, Stainless Steel Sensor Assembly, Waterline Controller in NEMA 4x Box
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WLC4000-220VAC
Zoro #
G2780382
UPC #
-
Country of Origin
United States

Dimensions

Sensor Dia. (In.)
3 in
Enclosure Width (In.)
10 1/2 in
Max. Circuit Length (Ft.)
50 ft
Sensor Cord Length (Ft.)
50 ft
Enclosure Depth (In.)
6 in
Enclosure Height (In.)
8 3/4 in
Sensor Length (In.)
20 in
Reference Probe Length
17 in
Housing Depth
5 in
Fill Stop Probe Length
14 in
Housing Width
10 1/2 in
Fill Start Probe Length
17 in
Process Connection Size
1 in
Housing Height
9 1/2 in
High Alarm Probe Length
10 3/8 in
Sensor Head Diameter
3 in

Details

Input Voltage
220V AC 50/60Hz
Relays
30 Amps at 250V AC
Switch Type
(2)SPST
Includes
Installation Instructions, Mounting Brackets and U Bolts, Sensor Wire, Stainless Steel Sensor Assembly, Waterline Controller in NEMA 4x Box
Item
Water Level Control
Valve
Can Be Used With 1 in Npt And 110Vac Or Eqivalent Made By Asco Model 8221
Enclosure Type
NEMA 4X
Special Features
110Vac Solenoid Required ( Purchase Seperately) Rated For Outdoor Installation, Building Automation Dry Contracts, Can Be Integrated Into Building Automation System, Compensates For Wave Action, Easy To Read Led Display, Low Voltage Probe, Modular Construction, No High Voltage In The Wet Area Of The System, No Moving Parts, One-Step Internal Testing System For The Electronics, Seperate Relay For Each Set Point, Stainless Steel Probes
Agency Compliance
ETL Listed
Enclosure Color
Gray
Type
Universal
Special Information
The WLC Series is perfect in any application where water level management is important such as cooling tower basins and water holding tanks for cooling towers. It uses a microprocessor that monitors all probes for correct operation and then provides the corresponding outputs to drive the power relays, the Building Automation System and a visual indication of the operational status. The Modular construction and a self-test feature insure user-friendly operation. By using a very low voltage and current, WLC Series sensors never foul or degrade
Control Type
Electronic With Microprocessor For Site Automation or Integration
Sensor Placement
On The Environment Wall or In A Static Pipe
Application
Cooling Towers, Water Water Tanks, Storm Water tanks, Sewage Water Systems, Well Water Holding tanks, Irrigation Lakes, Boilers, Water Storage Tanks
Sensors Included
Fill Height With High Level Alarm
Operating Range
1 1/2 and 3 in
Number of Switches
2
Voltage
220V AC
Standards
C-ETL-US
Functions
Fill, High Alarm
Mounting Style
Mounting Assembly
Probes Included
Fill Start, Fill Stop, High Alarm, Reference
Number of Indicator Lights
3
Outlet Pressure - Maximum
30 psi
Operating Temperature - Maximum
200 Degrees F
Included Flood Protection Lockout
Flood Protection Lockout Not Included
Sensor Material
PVC
Fill Start Probe Color
White
Number of Dry Contacts
3
High Alarm Probe Color
Green
Power Relay Current Rating
30 A
Reference Probe Color
Black
Housing Material
Polycarbonate
NEMA Rating
4X
Lockable
Lockable
Dry Contact Relay Contact Form
SPST
Dry Contact Switch Action
Normally Open
Feed Choices
Fixed Feed
Power Relay Switch Action
Normally Closed, Normally Open
Power Relay Contact Form
DPDT
Process Connection Type
NPT
Dry Contact Current Rating
0.5 A
Fill Stop Probe Color
Red
Number of Relays
2

Description

Water Level Control, Application Cooling Towers, Water Water Tanks, Storm Water tanks, Sewage Water Systems, Well Water Holding tanks, Irrigation Lakes, Boilers, Water Storage Tanks, Dry Contact Current Rating 0.5 A, Dry Contact Relay Contact Form SPST, Dry Contact Switch Action Normally Open, Electrical Lead Length Not Applicable, Feed Choices Fixed Feed, Fill Start Probe Color White, Fill Start Probe Length 17 in, Fill Stop Probe Color Red, Fill Stop Probe Length 14 in
