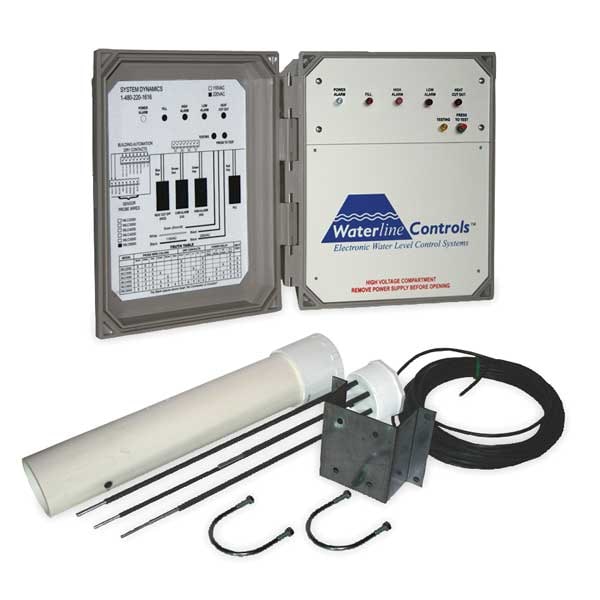

Waterline Controls Water Level Control Fill w/ Low Alarm WLC4500-120VAC - main

Water Level Control Fill w/ Low Alarm

  • Mfr # WLC4500-120VAC

  • Zoro # G1257207

product price: $1,390.99
/ea
Additional $70.00 delivery surcharge applies per item.
See details

Key Features

Input Voltage
110V AC 50/60 Hz
Relays
30 Amps at 250V AC
Switch Type
(3)SPST
Sensor Dia. (In.)
3 in
Includes
Installation Instructions, Mounting Brackets and U Bolts, Sensor Wire, Stainless Steel Sensor Assembly, Waterline Controller in NEMA 4x Box
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WLC4500-120VAC
Zoro #
G1257207
UPC #
-
Country of Origin
United States

Dimensions

Sensor Dia. (In.)
3 in
Sensor Length (In.)
20 in
Max. Circuit Length (Ft.)
50 ft
Enclosure Depth (In.)
6 in
Enclosure Width (In.)
10 1/2 in
Enclosure Height (In.)
8 3/4 in
Sensor Cord Length (Ft.)
50 ft
Reference Probe Length
17 in
Housing Depth
5 in
Process Connection Size
1 in
Fill Start Probe Length
15 1/2 in
Housing Width
10 1/2 in
Housing Height
9 1/2 in
Sensor Head Diameter
3 in
Low Alarm Probe Length
17 in
Fill Stop Probe Length
14 in

Details

Input Voltage
110V AC 50/60 Hz
Relays
30 Amps at 250V AC
Switch Type
(3)SPST
Includes
Installation Instructions, Mounting Brackets and U Bolts, Sensor Wire, Stainless Steel Sensor Assembly, Waterline Controller in NEMA 4x Box
Item
Water Level Control
Agency Compliance
ETL Listed
Special Information
The WLC Series is perfect in any application where water level management is important such as cooling tower basins and water holding tanks for cooling towers. It uses a microprocessor that monitors all probes for correct operation and then provides the corresponding outputs to drive the power relays, the Building Automation System and a visual indication of the operational status. The Modular construction and a self-test feature insure user-friendly operation. By using a very low voltage and current, WLC Series sensors never foul or degrade
Special Features
110Vac Solenoid Required ( Purchase Seperately) Rated For Outdoor Installation, Building Automation Dry Contracts, Can Be Integrated Into Building Automation System, Compensates For Wave Action, Easy To Read Led Display, Low Voltage Probe, Modular Construction, No High Voltage In The Wet Area Of The System, No Moving Parts, One-Step Internal Testing System For The Electronics, Seperate Relay For Each Set Point, Stainless Steel Probes
Sensor Placement
On The Environment Wall or In A Static Pipe
Number of Switches
3
Enclosure Type
NEMA 4X
Operating Range
1/2 and 6 in
Enclosure Color
Gray
Application
Cooling Towers, Water Water Tanks, Storm Water tanks, Sewage Water Systems, Well Water Holding tanks, Irrigation Lakes, Boilers, Water Storage Tanks
Type
Universal
Sensors Included
Fill Height With Low Level Alarm
Valve
Can Be Used With 1 in Npt And 110Vac Or Eqivalent Made By Asco Model 8221
Control Type
Electronic With Microprocessor For Site Automation or Integration
Dry Contact Switch Action
Normally Open
Included Flood Protection Lockout
Flood Protection Lockout Not Included
Number of Relays
2
Standards
C-ETL-US
Voltage
120V AC
Number of Dry Contacts
3
Fill Stop Probe Color
Red
Process Connection Type
NPT
Power Relay Current Rating
30 A
Power Relay Switch Action
Normally Closed, Normally Open
Functions
Fill, Low Alarm
Sensor Material
PVC
Fill Start Probe Color
White
Probes Included
Fill Start, Fill Stop, Low Alarm, Reference
Dry Contact Relay Contact Form
SPST
Reference Probe Color
Black
Power Relay Contact Form
DPDT
Feed Choices
Fixed Feed
Lockable
Lockable
Housing Material
Polycarbonate
Low Alarm Probe Color
Brown
Outlet Pressure - Maximum
30 psi
Dry Contact Current Rating
0.5 A
Mounting Style
Mounting Assembly
NEMA Rating
4X
Number of Indicator Lights
3
Operating Temperature - Maximum
200 Degrees F

Description

Water Level Control, Application Cooling Towers, Water Water Tanks, Storm Water tanks, Sewage Water Systems, Well Water Holding tanks, Irrigation Lakes, Boilers, Water Storage Tanks, Dry Contact Current Rating 0.5 A, Dry Contact Relay Contact Form SPST, Dry Contact Switch Action Normally Open, Electrical Lead Length Not Applicable, Feed Choices Fixed Feed, Fill Start Probe Color White, Fill Start Probe Length 15 1/2 in, Fill Stop Probe Color Red, Fill Stop Probe Length 14 in
