Shop WEATHERHEAD

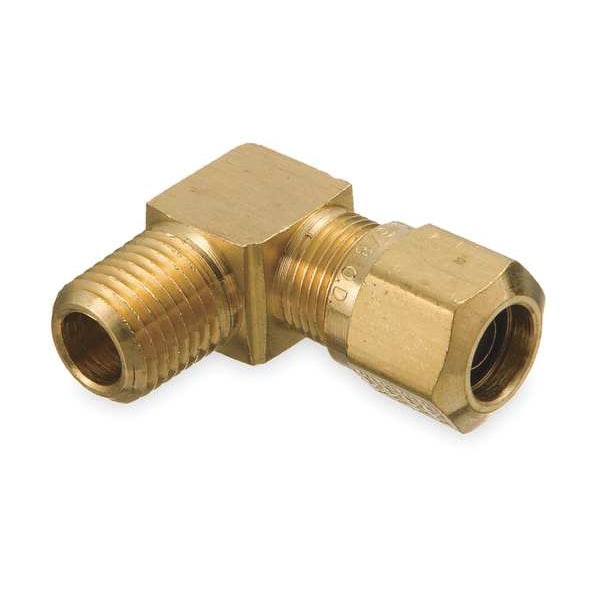

Elbow, Brass, Comp. 3/4 in, NPTF 1/8 in

  • Mfr # 1469X12

  • Zoro # G3410294

product price:
$
64.49
/ea

Key Features

Material
Brass
Length
2 in
Connector Type
Adapter
Standards
DOT FMVSS 571.106, SAE
Thread Size
1/2"-14
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1469X12
Zoro #
G3410294
UPC #
-
Country of Origin
United States
Item
Compression Fitting Elbow
Material
Brass
Connector Type
Adapter
Standards
DOT FMVSS 571.106, SAE
Temp. Range
-40 Degrees to 200 Degrees F
Includes
Nut and Sleeve
Connection
Compression Nylon Tube
Sub-Category
Elbows
Pressure (PSI)
150
Type
Male
Application
Air
Fitting Material
Brass
Compatible Tube Material
Nylon
Maximum Operating Temperature
200 Degrees F
Specific Fitting Shape
90 Degrees Elbow Adapter
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Resistance Properties
Vibration-Resistant
Fitting Side A Connection Type
Compression
Fitting Side B Connection Type
MNPTF
Maximum Operating Pressure
150 psi
System of Measurement
Imperial
Minimum Operating Temperature
40 Degrees F
Fitting Shape
90 Degrees Elbow
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F
Fitting Side 2 Connection Type
NPTF
Operating Pressure - Maximum
150 psi
For Media Type
Air
Fitting Side 1 Connection Type
Compression

Description

Compression Fitting Elbow, Application Air, Fitting Side A Connection Type Compression, Fitting Side B Connection Type MNPTF, Fitting Material Brass, Fitting Side A Tube Outer Diameter 3/4 in, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 2 in, Specific Fitting Shape 90 Degrees Elbow Adapter, Fitting Side B Pipe Size 1/2 in, Compatible Fitting Brands Not Applicable, Thread Size A 1-18, Thread Size B 1/2-14, System of Measurement Imperial
